WCC-1000

Model: WCC - 1000
Broj vrata i kapacitet: 2kom spoljna vrata, 1176 Lit.
Temperaturni opseg & preciznost: 0°C do 10°C, ±0.5°C na 4°C
Temperaturna uniformnost i senzor: ±2.0°C na 4°C, PT100
Rezolucija temperature: 1°C - prikaz, 1°C - kontrola
Gas hlađenja: Bez CFC (R - 404A) sistem hlađenja
Kompresor: 3/8HP
Isparivač: Dupli automatski isparivač
Odmrzavanje i cirkulacija: Automatski sistem odmrzavanja, dupli turbo ventilatori
Displej: Digitalni LCD sa pozadinskim osvetlenjem
Kontroler: Digitalni "Fuzzy" kontroler sa multifunkcionalnim tasterom "Jog-Shuttle Switch" ("Turn+Push")
Vrata: Spoljna vrata sa staklenim prozorom & Unutrašnja staklena vrata

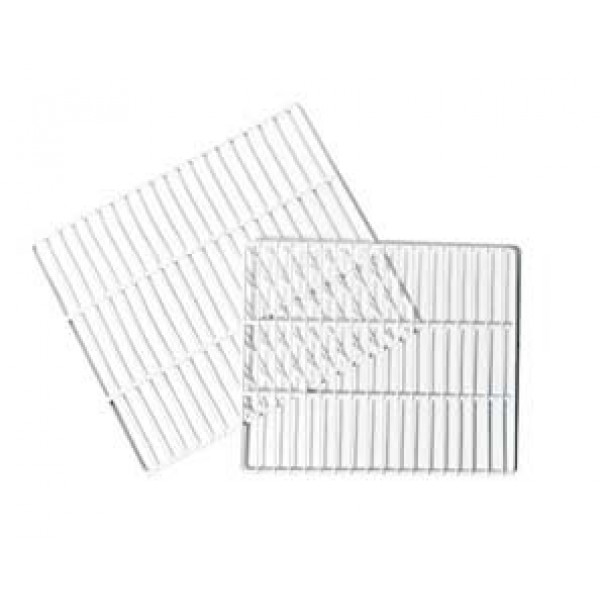

Police i opterećenje po polici: 6kom teflonskih polica, 16 kg
Priključci za dodatnu opremu: sa rupom za pristup, priključak za struju 120V / 230V, lampa
Sistemi zaštite: zaštita od strujnih i naponskih udara & zaštita od previsokih i preniskih temperatura, senzor za detektovanje grešaka
Materijal: Nerđajući čelik (#304) -interno, zaštićeni čelik - eksterno
Unutrašnje dimenzije: 1,200x700xh1,400mm
Spoljašnje dimenzije: 1,350x850xh2,000mm
Neto masa: 398 kg
Dimenzije pakovanja i bruto masa: 1,580x1,220xh2,180mm, 478 kg
Maksimalna snaga: 700 W
Napajanje i strujni priključak: Jednofazno napajanje, AC 120V, 60Hz ili AC 230V, 50 / 60Hz

IQ/OQ/PQ kvalifikacija: Da, moguća

Raspoloživost: Na lageru

Detalji

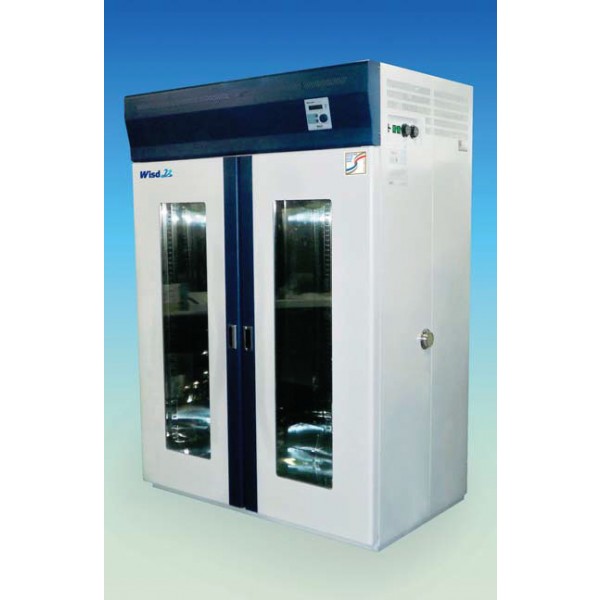

DAIHAN - brand Digital Cold Lab Chamber/Refrigerator, "WCC", 0°C ~ 10°C, 255 - & 1176 - Lit. with Wire Shelves, Digital Fuzzy Control, Highest Temp. Uniformity, CFC - Free(R - 404A) Refrigeration, Automatic Defrost System

with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery - information, and Traceable Data Base System
Highest Temperature Uniformity by Forced Air Circulation
CFC - Free (R - 404A) Refrigeration System
Patented Jog - Shuttle Control System
CE Certified
GMP Certified (Only "WCC - 1000" model)
PL (Product Liability) Insurance
Digital Fuzzy Control System Implementing Superior Temperature Accuracy

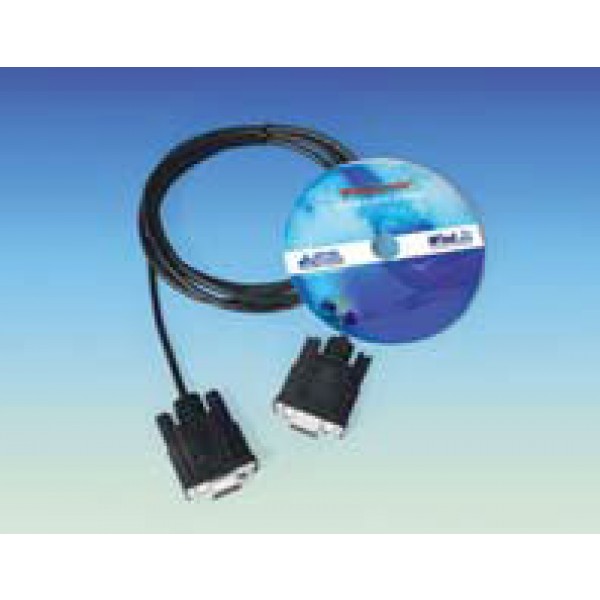

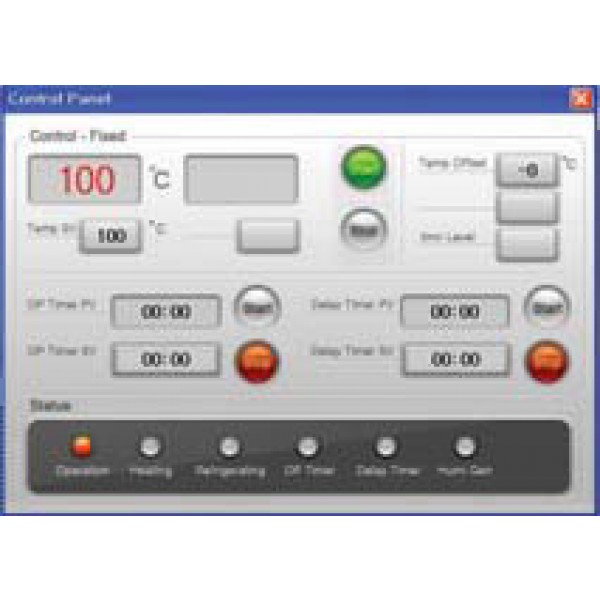

RS232C Interface for Monitoring and Controlling with PC
Storage Function: Set Values of Temperature and Timer
Digital LCD with Back - Light Function
Automatic Defrost System
Locking Mode Supported for Experimental Safety (Input to Jog - Shuttle can be Disabled)
Intelligent Control of Refrigerator for Preventing Overload of Compressor
Corrosion Resistant 304 Stainless steel Chamber and Teflon - coated Shelves
Double Fold Tempered Glass Window
CFC - Free (R - 404A) Refrigeration System
Over & Under Temperature Protection, Over Current Protection and Sensor Error Detection

Validation (IQ, OQ) Service is possible

Dodatne Informacije

ŠIFRA DH.WCC01000
Proizvođač Daihan
Tip instrumenta Komora
Podgrupa instrumenta Hladna komora
