VE1500P31P

Model: VE1500P31P
Base Model: VE1500P
Indicators: T31P, ABS plastic
Net Weight: 51kg
External Dimensions: 1260L x 840W x 90minH mm
Platform Material: Carbon steel, painted
Capacity x Readability: 1500 kg x 0.5 kg
Approval Resolution: 1:3000e
Maximum Central Load: 2250 kg
Operating Temperature / Humidity: -10°C to 40°C / 0% to 95% relative humidity, non-condensing
Load Cell: 4 x IP67 alloy steel, shear beam, OIML C3
Load Cell Capacity Emax: 1000kg
Output Impedance / Excitation Voltage: 350 Ω ± 3.5 Ω / 5Vto15V, DC/AC

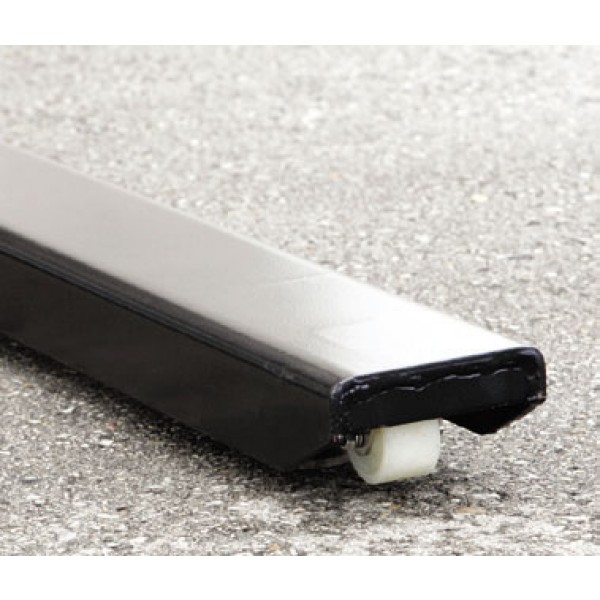

Feet: 2 x front edge rollers with 4 x self-swiveling ball-in-cup design with rubber bottom
Power: AC adapter Universal switching power supply
Junction Box: Rear-access, IP65, 304 stainless steel, 194L x 130W x 45H mm, with 5m long cable

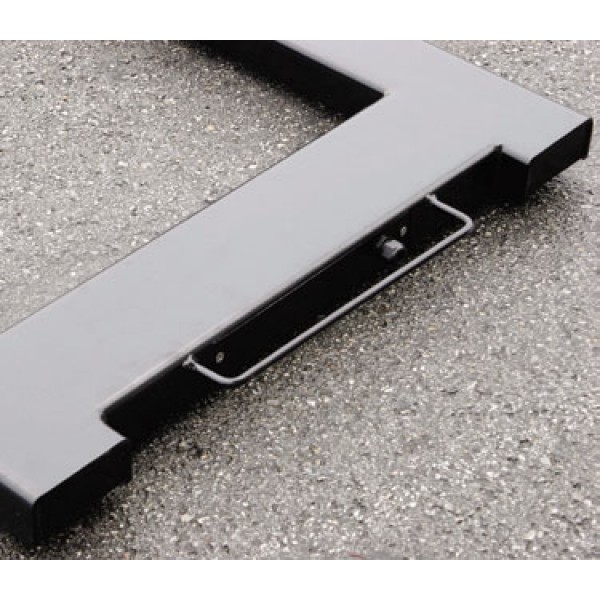

Other Features: Integrated lifting handle, external level indicator
Weighing Units: kg, g, lb, oz, lb:oz
Display: Backlit LCD, 25 mm high, 6-digit, 7-segment
Interface: Built-in RS232C, bi-directional
Battery: Internal rechargeable sealed lead acid battery (T31P: 100 hour / T32XW: 58-hour typical operation on full charge)
Other Indicator Features: Piece Counting 1d min APW, Geographical gravity adjustment, Environmental filtering

IQ/OQ/PQ service: Yes, possible

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

Affordability, Durability, OHAUS Quality & Value

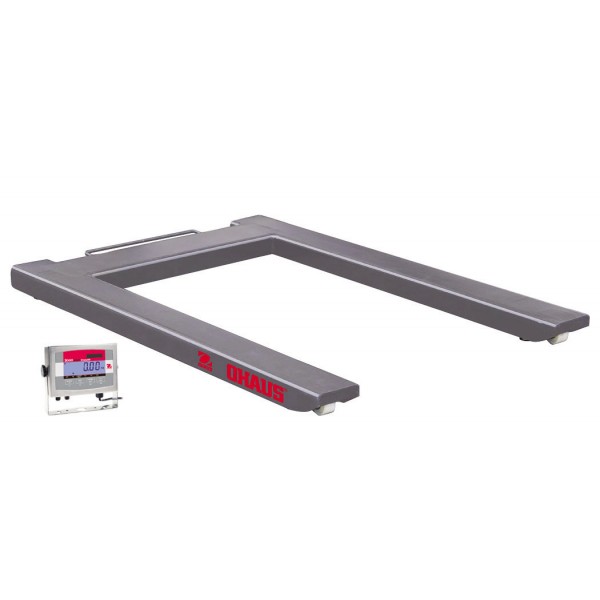

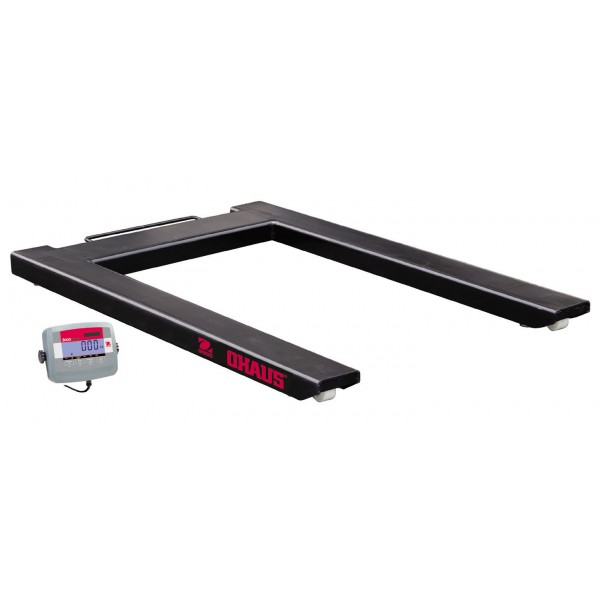

The OHAUS VE Series U-Frame Pallet Scales are the value solution for your dry or washdown weighing needs in industrial and commercial applications. Their high-quality material and construction are designed for years of trouble-free service. Together with mobility features such as lifting handle and front-mounted rollers, the OHAUS VE Series U-Frame Pallet Scales offers a unique combination of convenience, value and quality that your company can depend on.

Standard Features Include:
- Popular 1500kg capacity model

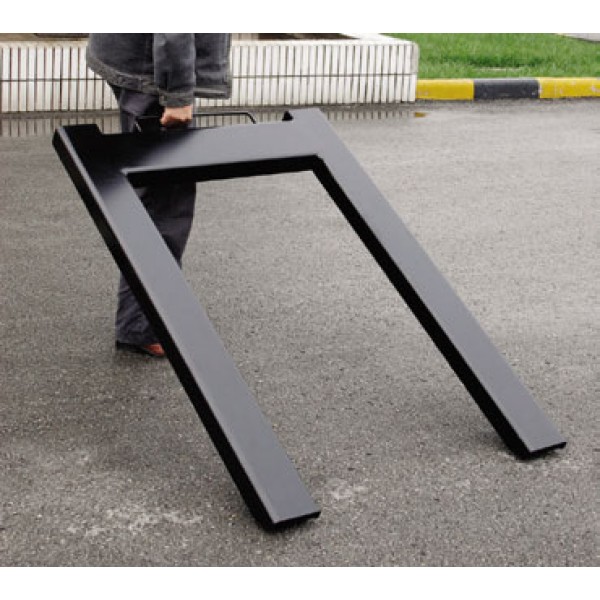

- Painted carbon steel and stainless steel models with handle and rollers for convenient lifting and relocation
- Two rugged OHAUS indicator models: T31P indicator features a high-impact ABS housing with key-holes on the rear cover for wall mounting and T32xW indicator features a 304 stainless steel IP65 housing
- Four OIML R60 approved IP67 alloy steel load cells
- Four load cell mounted feet, self-swiveling ball-in-cup design
- IP65 dust and water immersion protected stainless steel junction box
- Available second stage verified scale models 1:3000e with OHAUS indicators
- OHAUS indicators featuring backlit LCD displays with high-visibility 25mm high digits, five weighing units (kg, g, lb, oz, lb:oz), RS232, rechargeable lead acid battery operation and piece counting functione.
