UV-5100B

Model: UV - 5100B
Optički sistem: Jednozračni (rešetka: 1200 Linija/mm)
Opseg talasne dužine: 190 - 1000nm
Protok ("Bandwidth"): 2nm
Preciznost talasne dužine: ±1nm
Ponovljivost talasne dužine: 0.5nm
Podešavanje talasne dužine: Auto
Fotometrijska preciznost: ±0.5%T
Fotometrijska ponovljivost: 0.3%T
Fotometrijski opseg: - 0.3 - 3A, 0 - 200%T
Rasipanje svetla (Stray Light): ≤0.3%T
Stabilnost: ± 0.002A/h @ 500nm
Displej: 128*64 LCD
Detektor: Silikonska fotodioda
Izvor svetlosti: Tungsten & Deuterium lamp
Izlazni interfejs: USB priključak i paralelni priključak (Printer)
Napajanje i snaga: AC 85 do 250V
Dimenzije: 490*370*220mm
Masa: 15kg

IQ/OQ/PQ kvalifikacija: Da, moguća

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

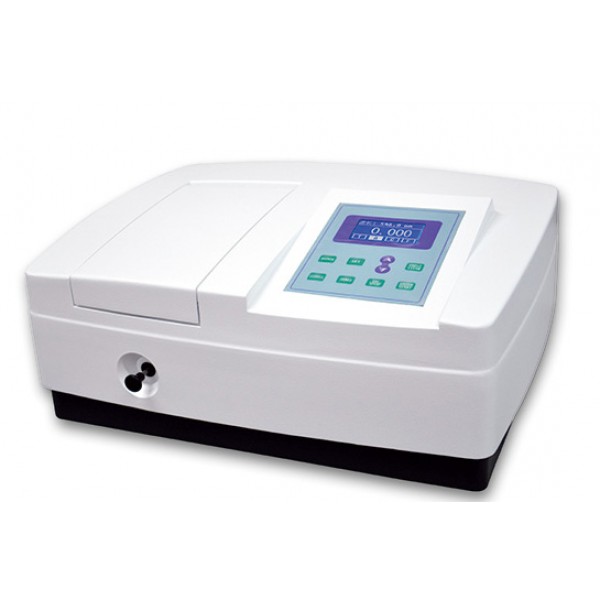

UV - 5100B is a parctical UV visible spectrophotometer. It's special structural design ensures high reliability and easy replacing of components.
Features:
Low stray light: UV - 5100B is made of high quality components with rigid structure which ensures low stray light.
Auto setting wavelength: Users can set wavelength automatically through arrow keys to avoid operation errors.
Stability and durability: UV - 5100B users a rigid die - cast aluminum base as its optical mount to ensure instrument stability and reliability.
Date output: UV - 5100B is equipped with USB port to connected with a PC to Display spectrum scanning,kinetics and multi wavelength testing results on the screen. The software is optional.
Standard curve: UV - 5100B can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.
Multiple results readout: UV - 5100B can Display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.
