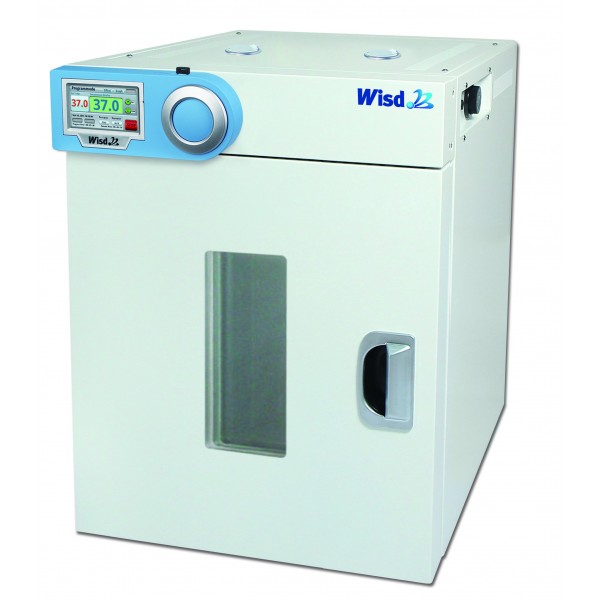

ThermoStable SOF-W155

Model: ThermoStable SOF - W155
Model sa prozorom: Da
Kapacitet: 155 Lit
Interne dimenzije (ŠxDxV) (mm): 550x480x600
Eksterne dimenzije (ŠxDxV) (mm): 718x777x947
Snaga grejača: 1.6 kW
Temperaturni opseg: Ambijentalna temperatura +5°C do 250°C
Temperaturne fluktacije: ±0.3°C na 100°C, ±0.5°C na 150°C
Temperaturne varijacije: ±1°C na 100°C, ±2°C na 150°C
Temperaturni senzor: PT 100
Kontrola temperature: ±0.1°C
Vreme zagrevanja: 25 min. do 100°C, 40 min. do 150°C
Vreme oporavka (vrata otvorena 30 sekundi): 6 min. do 100°C, 6 min. do 150°C
Kontroler: "Smart-Lab™" kontroler
RS232: Port dostupan za povezivanje sa PC kompjuterom
Displej: 4" Ekran osetljiv na dodir TFT LCD
Tajmer: 99hr 59 min (funkcija odloženog startovanja / neprekidni rad)
Materijal - interno: Nerđajući čelik (#304)
Materijal - eksterno: zaštićeni čelik
Izolacioni materijal: staklena vuna
Police: 2kom, žičane police od nerđajućeg čelika
Opterećenje po polici: 16 kg
Ventilacija: Ventilaciona rupa sa poklopcem od nerđajućeg čelika, prečnik otvora 40mm
Ventilacija: 2 kom
Cirkulacija: tip konvencije forsiranog vazduha
Sistemi zaštite: Zaštita od previsoke temperature i zaštita od visoke/niske struje, senzor za detektovanje grešaka
Ostalo: UL / CUL sertifikat, CE sertifikat, GD - znak, funkcija skladištenja podataka (temperatura i vreme), Alarm (Status grešaka i kraj tajmera)
Neto masa (kg): 78
Dimenzije pakovanja (WxDxH) (mm): 808x884x1,133
Težina transportnog pakovanja (kg): 92
Maksimalna snaga: 1566 W
Potrošnja energije na 100°C: 204 Wh
Potrošnja energije na 150°C: 398 Wh
Napajanje: jednofazno 120V, 60Hz ili 230V, 50/60Hz

IQ/OQ/PQ kvalifikacija: Da, moguća

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

SMART Ovens, Forced Convection - type, 50 - /105 - /155 - Lit. with Smart - Lab™ Controller, 4" Full Touch Screen, Fuzzy - PID Control, WiRe™ Service, with Certi. & Traceability, up to 250°C, ±0. 3°C

with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery - information, and Traceable Data Base System
Digital Fuzzy Control System Implementing Superior Temperature Accuracy
Optimized Air Flow by Forced Convection Mechanism
Smart - Lab™ Controller
CE Certified
UL / CUL Certified
GD (Good Design) - mark
PL (Product Liability) Insurance
Suitable for Drying, Baking, Conditioning, Curing, Pre - Heating and Aging
The Best Temp. Uniformity & Accuracy by High Performance Heating Mechanism: 3 Side - Heating
Optimized Air Flow by Forced Convection Mechanism
Ergonomic Design 4" Full Touch Screen TFT LCD (Smart - Lab™ Controller)
WiRe™ App & Web Service.
Automatic Data Recording
Self - Diagnostic FunctionCompact New Body Design
Variable Program Setting for Multiple Patterns with Multiple Segments
Internet Connectivity with WiFi
Controller SW can be upgraded through USB port.
The Recorded Data could be transferred to PC by USB memory
2ea of Stainless steel Wire Shelves Included
RS232C Interface for Monitoring and Controlling with PC
Ambient to 250°C of Temp. Range, Fluctuation of ±0. 3°C at 100°C
Corrosion Resistant 304 Stainless steel Chamber
Over Temperature & Over Current Protection, Sensor Error Detection

Validation (IQ, OQ) Service is possible
