ThermoStable OV-20

Model: ThermoStable OV - 20
Kapacitet: 18.6 Lit.
Opseg vakuuma: 10 do 750 mmHg
Temperaturni opseg/senzor: Ambijentalna temperatura +5°C do 200°C / PT100
Preciznost i uniformnost temperature: ± 0.5°C na 100°C / ±2.0°C na 100°C
Snaga grejača/Potrošnja: 300W x 2kom
Vreme zagrevanja: 50 min. do 100°C, 90 min. do 150°C
Tajmer i alarm: 99hr 59min (mogućnost odloženog startovanja / neprekidnog rada), status grešaka i kraj tajmera
Displej: Digitalni LCD ekran sa pozadinskim osvetljenjem
Kontroler: Digitalni "Fuzzy" kontroler sa multifunkcionalnim tasterom "Jog-Shuttle Switch" ("Turn+Push")
Rezolucija: Kontrola: ±1.0°C, Prikaz: ±1.0°C
Police: 2 kom aluminijumske police
Zaštitni sistemi: Zaštita od previsoke temperature i zaštita od visoke/niske struje, senzor za detektovanje grešaka, zaštita od curenja
Materijal: Interno: Nerđajući čelik (#304), Eksterno: zaštićeni čelik,
Model sa prozorom: Staklo otporno na temperaturu 12T, polikarbonat 5T za sigurnost
Ostalo: funkcija skladištenja podataka (temperatura i tajmer), mogućnost zaključavanja (isključivanje "Jog" multifunkcionalnog tastera)
Interne dimenzije (ŠxDxV) (mm): 265x290x265
Eksterne dimenzije (ŠxDxV) (mm): 472x443x542
Dimenzije konektora za vakuum: spoljašnji prečnik 10 mm
Neto masa: 48 kg
Dimenzije pakovanja (WxDxH) (mm): 572x660x840
Bruto masa: 67 kg
Maksimalna snaga: 600 W
Napajanje i strujni priključak: Jednofazno napajanje, AC 120V, 60Hz ili AC 230V, 50 / 60Hz

IQ/OQ/PQ kvalifikacija: Da, moguća

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

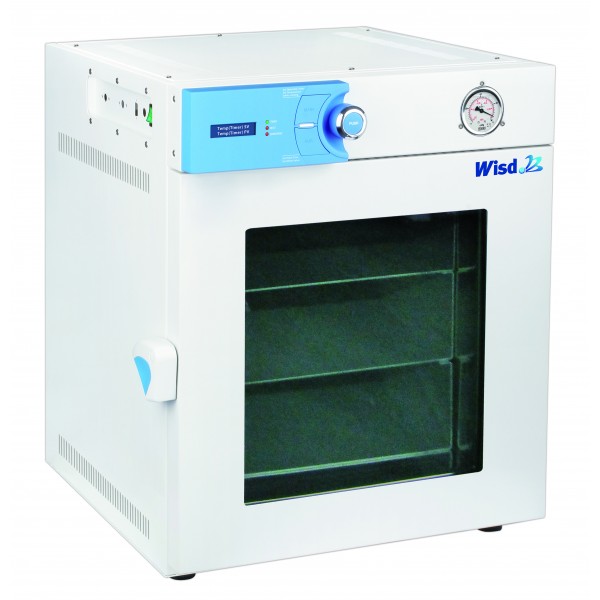

DAIHAN ThermoStable™ OV Precise Vacuum Ovens, Highly Safety Viewing Window, 18. 6 - /30 - /69 - Lit. , up to 200°C with 2xAl - Shelves, Digital Fuzzy Control, Superior Temp. & Vacuum Accuracy, Highly Safety Viewing Window, 10 ~ 750 mmHg

with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery - information, and Traceable Data Base System
Suitable for Drying, Baking, Conditioning, Curing, Out - Gassing Solids and Liquids, Vacuum Embedding, Moisture Testing, Plating and Aging Test
Very Easy and Convenient for Vacuuming and Venting, Easy to read Vacuum Gauge
Highly Safety Viewing Window (Tempered Safety Glass+ Polycarbonate Window)
Patented Jog - Dial Control System and Back - Light LCD
UL / CUL Certified
CE Certified
PL (Product Liability) Insurance
Digital Fuzzy Control System Implementing Superior Temperature Accuracy
RS232C Interface for Remote Monitoring and Controlling with PC
Superior Uniformity and Stability
Storage Function: Alarm & Timer
High Quality Door Sealing: High Temperature Grade Silicone Molded Gasket
Over Temperature & Over Current Protection and Sensor Error Detection
Locking Mode Supported for Experimental Safety (Input to Jog - Dial can be disabled)

Validation (IQ, OQ) Service is possible
