Thermoblock TB2

Temperaturni opseg: ambijentalna +5°C do 130°C
Podešavanje temperature: 15°C - 130°C
Temperaturna stabilnost: ± 0.1°C (na 37°C)
Uniformnost temperature u bloku: ± 0.1°C (na 37°C)
Uniformnost u sličnim blokovima: ± 0.2°C (na 37°C)

Vreme zagrevanja:
30°C - 37°C: oko 2 min, zatim je potrebno 3 min za stabilizaciju
25°C - 100°C: oko 15 min, zatim je potrebno 5 min za stabilizaciju
30°C - 130°C: oko 20 min, zatim je potrebno 5 min za stabilizaciju

Kapacitet: 2 izmenjiva aluminijumska bloka za test tube ili tube za mikrocentrifugu (Jedan blok) ili 1 izmenjivi blok za mikrotiter-ploče (Kombi blok)

Displej: digitalni, LED
Rezolucija: 0.1°C
Kontrolna LED sijalica za: grejač, greška
Tajmer: 1 - 9,999 min sa automatskim gašenjem
Signal tajmera: zujalica
Eksterni temperaturni senzor: opciono
Dodatne funkcije: alarm za temperaturne devijacije, podešavanje ofseta, kašnjenje za START i STOP, Kalibracija
Dimenzije (D x Š x V): 200 mm x 280 mm x 100 mm
Snaga: 220 - 240 V / 50 - 60 hz ili 110 - 120 V / 50 - 60 hz 300 W
Zaštita od pregrevanja: Interni termalni osigurač
Ambijentalni uslovi: 10°C do 35°C (80 % max. Relativna vlažnost)
Dimenzije bloka (D x Š x V): Jedan Blok: 100 x 70 x 62.5 mm, Kombi Blok: 140 x 100 x 49 mm

Raspoloživost: Na lageru

Detalji

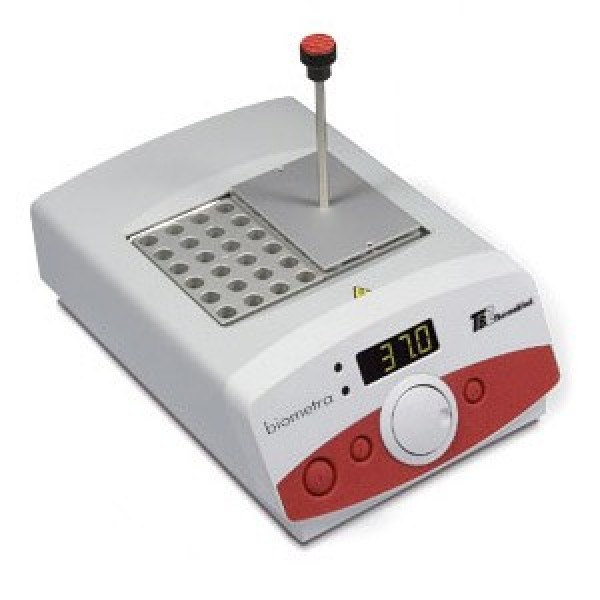

Thermoblock TB2

Dry block heater for incubation at constant temperature.

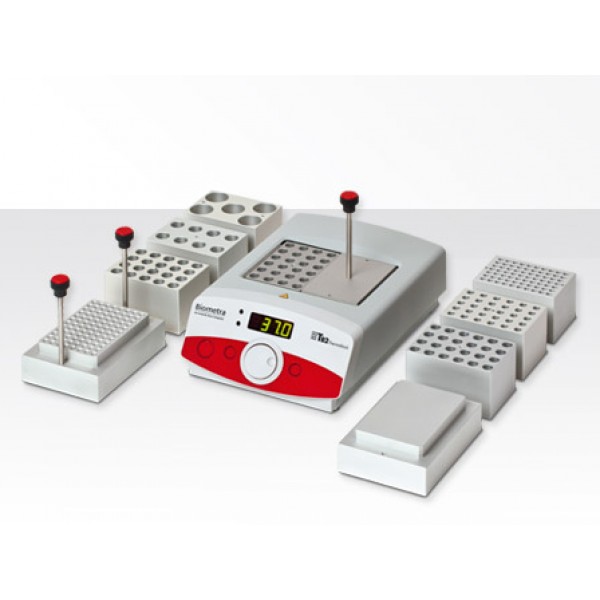

Dual block positions, removable blocks
11 different block options
Temperature range: RT +5°C to 130°C
The Thermoblock TB2 has been developed for incubation of reaction tubes at fixed temperatures. Temperature control is achieved by means of a Pt1000 microsensor in order to reach outstanding block uniformity (+/ - 0. 1°C at 37°C).

Incubation of a magnitude of samples contained in different reaction tubes causes no problems for the block heater. The TB2 has a capacity for two single blocks or one combi block. Combinations of different single blocks allow simultaneous incubation of e. g. 1. 5 ml and 0. 5 ml reaction tubes.

The waterproof front panel is slightly angled to facilitate data entry and temperature readings. It features 3 buttons and a central control knob for starting the block, entering temperatures up to 130°C and additional functions. The large LED Displays the current temperature as precise as up to one decimal. The TB2 has a small footprint of 200 x 280 x 100 mm (W x D x H).

Dodatne Informacije

ŠIFRA 051-300
Proizvođač Biometra
Tip instrumenta Termomikser i termoblok
Podgrupa instrumenta Termoblok
