T72XW-EU

Model: T72XW
Opseg: Up to 998000 (t, kg, g or lb)
Maximum Displayed Resolution: 1:50,000
Maximum Approved Resolution: 1:6,000 (EC, OIML)
Weighing Units: kg, lb, oz, lb-oz, g, ton, t
Weighing Modes: Animal Weighing, Parts Counting, Checkweighing
Display: Transflective graphic LCD with white backlight, 240 x 96 pixels
Under/Accept/Over indicators: 3 Zones, up to 25 targets
Controls: 8 function, 4 navigation, 12 alpha numeric membrane switches
Ingress Protection: IP66
Load Cell Excitation Voltage: 10 VDC
Load Cell Drive: Up to 10 x 350 Ω load cells
Load Cell Input Sensitivity: Up to 3 mV/V
Stabilization Time: Within 2 seconds
Auto-Zero Tracking: Off, 0.5d, 1d, 3d or 10d
Zeroing Range: +/-2% or +/-20% of capacity
Interfaces: RS232 (included), SD card (included), Ethernet (optional), USB with Discrete I/O (optional), Second RS232/RS485 (optional)
Operating Temperature Range: -10 °C to 40 °C
Main Power: 100-240 V to 0.15 A 50/60 Hz internal power supply
Housing Dimensions (W x D x H): 283 x 86 x 232 mm
Net Weight: 3 kg
Shipping Weight: 3.4 kg
Shipping Dimensions: 324W x 240D x 187H mm

IQ/OQ/PQ service: Yes, possible

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

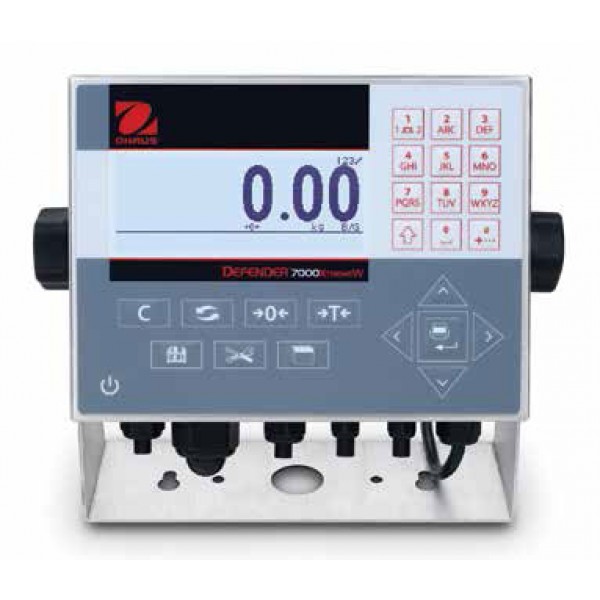

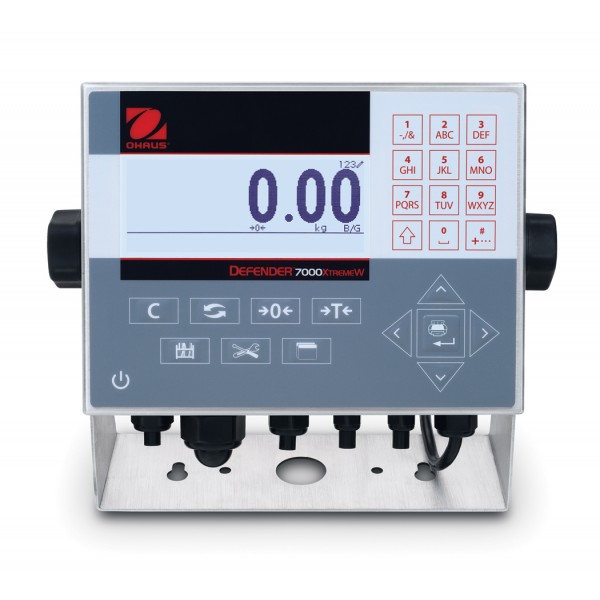

The OHAUS T72xW indicator provides flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities including over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear and tear of industrial locations.

Applications: Weighing, Parts Counting, Checkweighing, Animal / Dynamic Weighing
Display: Transflective graphic LCD with white backlight, 240 x 96 pixels
Operation: AC Power (Included)
Communication: Easy access communication port including RS232 (included), Ethernet and 2^nd RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction: IP66/NEMA 4x stainless steel housing and mounting bracket
Design: Check weighing lights with selectable operation and audible signal settings, sealed front panel, five operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability indicator, overload/underload indicators
