T71P

Model: T71P
Construction: ABS plastic with internal reinforcing ribs, reversible rear housing, painted steel wall mount bracket with adjustment knobs
Full Scale Capacity Range: 1 to 999,950 kg/lb
Max Displayed Resolution: 1:50,000d
Maximum Approved Resolution: 1:10,000e / Dual range 1:3000e
Maximum Counting Resolution: 1:500,000d
Min Average Piece Weight (APW): 0.1d
Weighing Units: kg, lb, g, oz, lb:oz, tonnes, custom
Weight Display: 2-line LCD with 6-digit, 7-segment, 25mm high primary digits, and high-contrast LED backlight
Checkweigh Indication: 3-color LED with configurable beeper signal
Keyboard: 17-key membrane switches (including alpha-numeric keypad), with positive tactile and audible feedback
Extra Functions/Modes: Dual range, Counting, Dynamic, Display Hold, Percent, Checkweighing/Count, Accumulation and Statistics, 256 Library memory, Five-language display
Other Software Features: Zero calibration, Calibration test, 5-point Linearity, Geographical gravity adjustment, Auto-tare, Auto-tare on-accept, GMP Time-Date, Key function lock, Temporary display of 10x resolution
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: Up to 3 mV/V
Load Cell Drive: Up to 8 x 350 Ω load cells
Stabilization Time: Within 2 seconds
Zeroing Range: 2% or 100% of capacity
Span Calibration: 1 kg/lb to 100% of capacity
Interface: Built-in dual scale connection, RS232 and external input / Optional RS422/485 / AC relay / DC relay / second RS232 / Alibi memory
Operating Temperature Range: -10°C to 40°C
Relative Humidity Range: Maximum 80% up to 31°C, decreasing linearly to 50% at 40°C
Power: 100-240 VAC / 50-60 Hz, internal universal power supply, line cord, 6 C-type dry cell batteries (80-hr. typical operation), optional internal rechargeable NiMH battery (30-hr. typical operation)
Enclosure Dimensions: 260W x 71D x 168H mm
Overall Dimensions (inc. bracket): 316W x 71D x 224H mm
Net / Shipping Weight: 1.5 kg / 2.3 kg
Shipping Dimensions: 330W x 240D x 180H mm

IQ/OQ/PQ service: Yes, possible

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

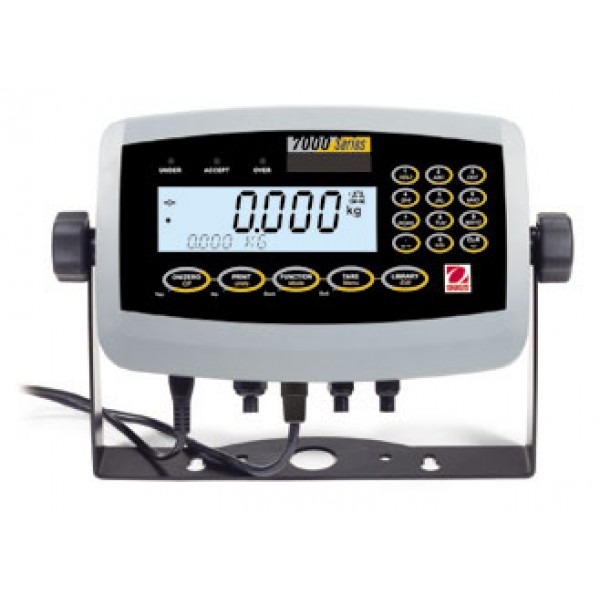

The T71P advanced-operation indicator is ideal for use in conjunction with bench and floor scales for a multitude of applications such as production, packaging, inventory, and shipping and receiving. Its advanced features include maximum configurability, 3-color checkweighing LED's, totalization mode, a 255-memory library, and statistics print output. The indicator also supports dual-scale operation with the included analog scale base input as well as GMP/GLP data output.

Applications: Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Accumulation, Display Hold
Display: Backlit liquid crystal display (LCD) with secondary information line, 3 color checkweighing LEDs
Operation: Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)
Communication: Easy access communication port including RS232 (included) and 2^nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction: ABS housing and painted steel mounting bracket, non-slip rubber feet
Design: User-configurable resolution 50,000d/10,000e, Alibi memory kit (accessory sold separately), five operating languages, OIML Approved NTEP Certified and Measurement Canada Approved
