T51P

Model: T51P
Construction: ABS plastic with internal reinforcing ribs, reversible rear housing, painted steel wall mount bracket with adjustment knobs
Full Scale Capacity Range: 1 to 999,950 kg/lb
Max Displayed Resolution: 1:30,000d
Maximum Approved Resolution: 1:10,000e / Dual range 1:3000e
Maximum Counting Resolution: 1:300,000d
Min Average Piece Weight (APW): 0.1d
Weighing Units: kg, lb, g, oz, lb:oz, tonnes, custom
Weight Display: 6-digit, 7-segment LCD, 25mm High digits, with high-contrast white LED backlight
Checkweigh Indication: 3-color LED with configurable beeper signal
Keyboard: 4 function membrane switches, with positive feedback
Extra Functions/Modes: Display Hold, Dynamic Weighing, Counting, Checkweighing, Percent Weighing
Other Software Features: Zero calibration, Calibration test, Geographical gravity adjustment, Auto-tare, Auto-tare on-accept, GMP Time-Date, Key function lock, temporary display of higher resolution
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V
Load Cell Drive: up to 8 x 350 Ω load cells
Stabilization Time: within 2 seconds
Zeroing Range: 2% or 100% of capacity
Span Calibration: 1 kg/lb to 100% of capacity
Interface: Built-in RS232 and external input / Optional RS422/485 / optional AC relay / Opional. DC relay / optional second RS232
Operating Temperature Range: -10°C to 40°C
Relative Humidity Range: Maximum 80% up to 31°C, decreasing linearly to 50% at 40°C
Power: 100-240 VAC / 50-60 Hz, internal universal power supply, line cord, 6 C-type dry cell batteries (80-hr. typical operation), optional internal rechargeable NiMH battery (30-hr. typical operation)
Enclosure Dimensions: 260W x 71D x 168H mm
Overall Dimensions (inc. bracket): 316W x 71D x 224H mm
Net / Shipping Weight: 1.5 kg / 2.3 kg
Shipping Dimensions: 330W x 240D x 180H mm

IQ/OQ/PQ service: Yes, possible

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

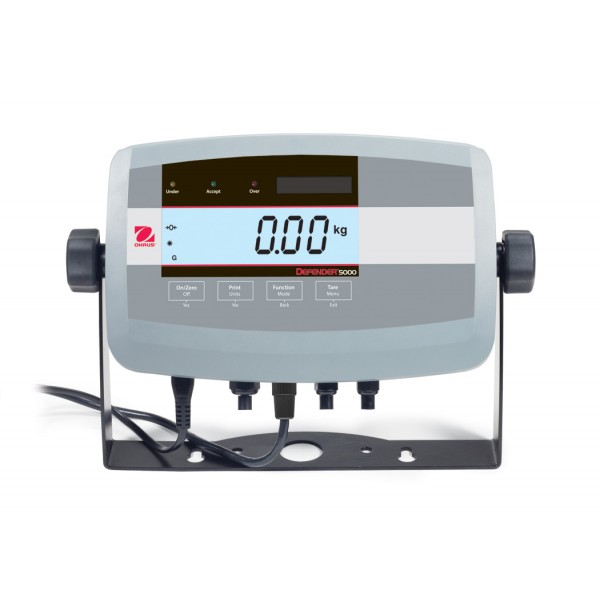

The ABS plastic T51P is ideal for use in conjunction with bench and floor scales for standard industrial weighing applications. With various customization and configurability options, optional NiMH battery operation, flexible mounting capabilities, and multiple connectivity options, T51P provides the functionality needed for most standard industrial weighing needs.

Applications: Weighing, Parts Counting, Checkweighing, Dynamic/Animal Weighing, Display Hold, Percent Weighing
Display: Backlit liquid crystal display (LCD), 3 color checkweighing LEDs
Operation: Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)
Communication: Easy access communication port including RS232 (included) or RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction: ABS housing and painted steel mounting bracket, four-key membrane keypad, reversible front cover, non-slip rubber feet
Design: User-configurable resolution up to 30,000d/10,000e, OIML Approved, NTEP Certified and Measurement Canada Approved
