T32ME

Model: T32ME
Full Scale Capacity Range: 5 to 20,000 lb or kg
Displayed Resolution: 1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved
Construction: ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket
Weight Display: 6-digit, 7-segment red LED 0.8in / 20mm digit height
Keyboard: 4-button mechanical switches, raised tactile keys
Weighing Units: lb, oz, lb-oz, kg, g
Extra Functions/Modes: Parts Counting, Display Hold, Checkweighing, Weight Accumulation
Checkweigh Display: 3 LED: Red-green-yellow (Over-Accept-Under)
Minimum Average Piece Weight: 1d
Load Cell Excitation / Input Sensitivity: 5V DC / up to 3 mV/V (min 1 µV/d)
Load Cell Drive: Up to four 350 load cells
Stabilization Time: Within 2 seconds
Zeroing Range: 2% or 100% of capacity
Auto-Zero Tracking: Off, 0.5, 1 or 3 scale divisions
Span Calibration: 5 lb or 5 kg to 100% capacity
Interface: Bidirectional RS232C
Operating Temperature Range: 14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperature up to 31°C / 88°F, decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing
Power: 9-12 VDC, 0.5A, external AC adapter

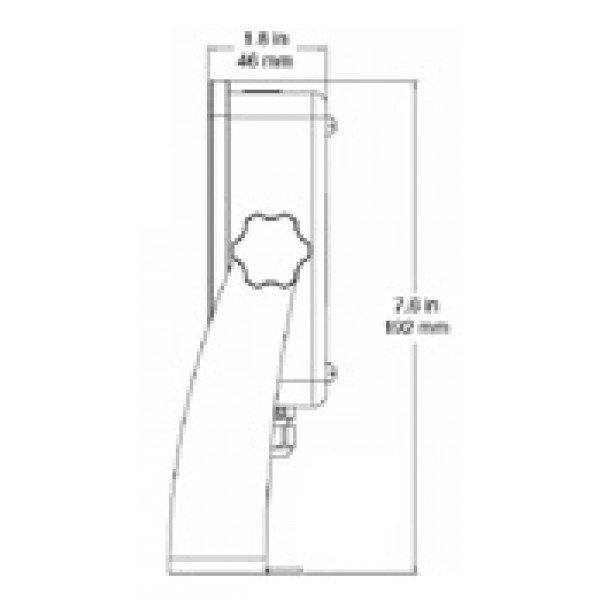

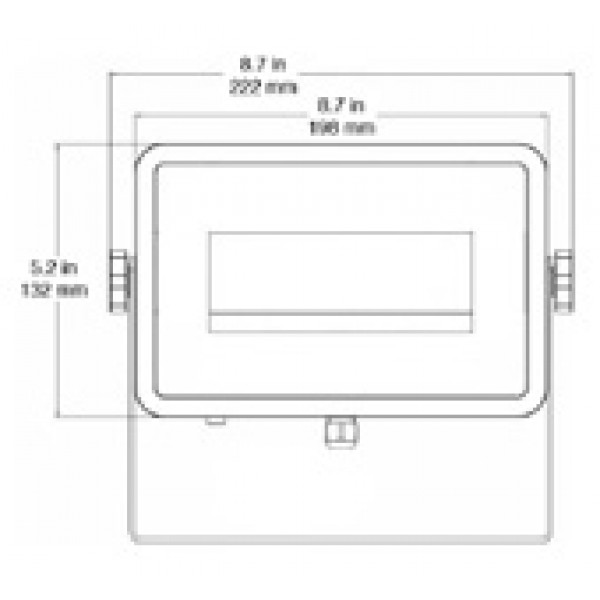

Enclosure Dimensions (W x D x H) (check pictures): 7.8 x 1.8 x 5.2 in / 198 x 46 x 132 mm
Net Weight: 1.5 lb / 0.7 kg
Shipping Dimensions (W x D x H): 10.7 x 9.2 x 7.2 in / 271 x 234 x 182 mm
Shipping Weight: 4.0 lb / 1.8 kg

IQ/OQ/PQ service: Yes, possible

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

Designed With Affordability In Mind For Industrial Applications!

Now available in four models, the OHAUS 3000 Series of Economical Indicators offer software modes for common industrial weighing applications:

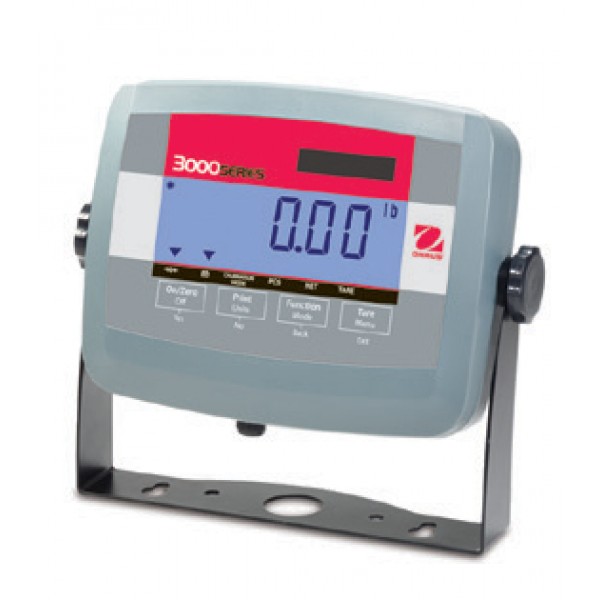

- The T31P combines a high-impact ABS housing with a large backlit LCD display, bi-directional RS232 and 120-hour internal rechargeable battery. The T31P features software for weighing and simple parts counting.

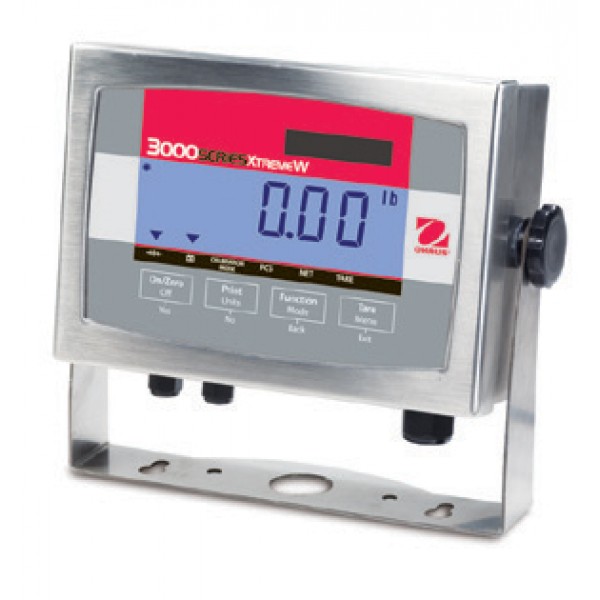

- The T32xW replaces the T31xW with the addition of an improved NEMA4x/IP65 washdown all stainless steel housing and a 58-hour internal rechargeable battery. The T32xW also features software for weighing and simple parts counting. Stainless steel mounting bracket included.

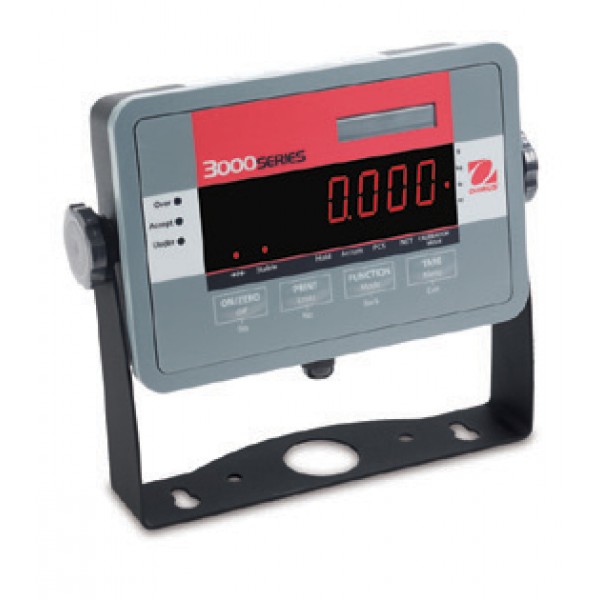

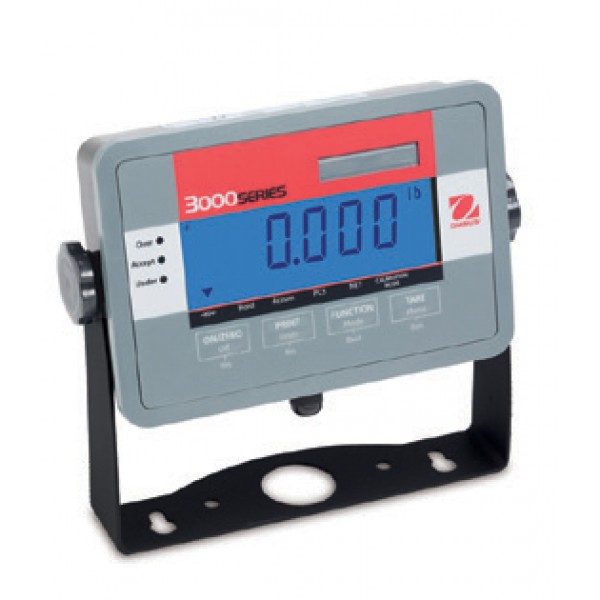

- The new T32MC and T32ME versions are designed for floor scale and other installations where internal battery power are not required. Both feature a painted steel housing with high-impact ABS faceplate, bi-directional RS232 and software for weighing, simple parts counting, basic checkweighing, display hold and accumulation of weight results. Painted steel mounting bracket included.

Standard Features Include:
- lb, oz, lb-oz, kg and g weighing units
- Ability to drive up to four 350Ω load cells
- Up to 20,000 lb/kg capacity with 20,000d maximum displayed default weighing resolution
- 6,000d NTEP certified and Measurement Canada approved Legal-for-Trade weighing resolution
- Minimum parts counting average piece weight of 1d
- Built-in bi-directional RS232C for printing or connection to PC
- Adjustable filtering levels to meet the requirements of industrial environments
