RX-630SA

Model: RX-630SA
Test Standard: JIS K 2541-4, ISO 8754, ASTM D4294-03, etc.
Sample: Kerosene, Naphtha, Gas oil, Crude oil, Base oil, etc.
Measuring Range: 0 to 6 wt %
Measuring Time: 10 to 990 sec, 1 to 99 times
Precision: LOD (Limit of Detection) = 15 mg/kg; LOQ (limit of quantitation) = 50mg/kg
Sample Changer: Carousel type 12 position (sample volume: approx. 3ml)
X Ray Source: Small air - cooled X-ray tube rated 7kv - 0,2mA
Sample Cell: Reusable 2 piece PTFE cup with disposable cell sheet
Automatic Calibration: 2 points, 3 points, M auto (max 12 points) calibration
Automatic Correction: C/H correction, Temperature correction, Barometric pressure correction
Number Of Calibration Curve: 3
Printer: Build-in dot matrix type, paper width: 57mm
Data Output: 1x RS-232C
Data Storage: Last 999 test results
Safety: Cut off X-ray tube supply by interlock system when X-ray is leaked
Ambiental Conditions: 10 to 30°C (with a temperature drift within 10°C in a day) Relative humidity: less than 80%
Size (W x D x H) (mm): 555 x 555 x 262
Weight (Kg): 27
Power Supply: AC100 to 240V, 200VA, 50/60Hz

IQ/OQ/PQ Qualification: Yes, possible

Raspoloživost: Na lageru

Detalji

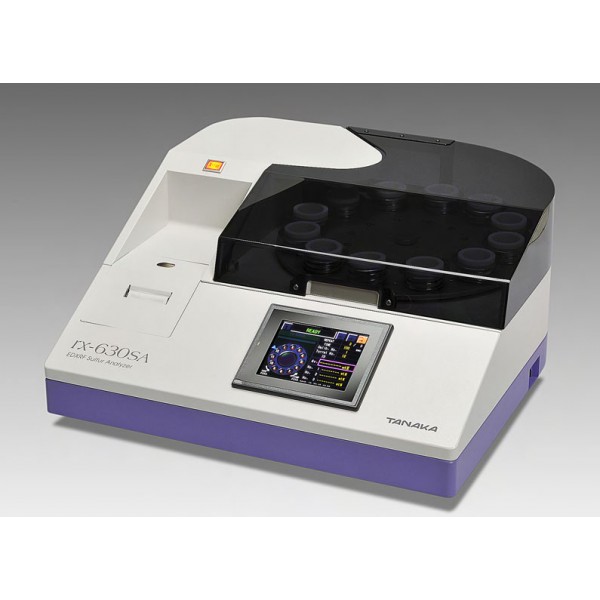

EDXRF Sulfur Analyzer RX-630SA

Operation improved by the adoption of 5" color touch screen.

Thanks to the new GUI, operator can measure sulfur content precisely without training.
RH-630SA determines total sulfur in petroleum products, such as gas oil, fuel oil, crude oil and naphtha, using energy dispersive X-ray fluorecence (EDXRF) method, which is an accurate, non-destructive, economical and yet quick method described in ISO 8754 and ASTM D4294-03.

Sample ID and data storage
By added Sample ID entering function, test result will be printed out with sample ID. RX-630SA has a data storage capability up to 999 test results and reprint previous data any time.

Carousel type sample changer with acrylic cover
X-Ray is shielded by a metallic cover moving downward on the objective sample cell. The acrylic cover is for dust protection of sample and measurement area, it may be opened during test, allowing access to sample cell in the cue.

Tool-free maintenance
By changing the fixed method of the carousel and the sample cell flange, sample leak protection sheet exchange can be done without using screwdriver.

Dodatne Informacije

ŠIFRA RX-00-006
Proizvođač Tanaka
Tip instrumenta Sulfur Meter
Podgrupa instrumenta EDXRF Sulfur Meter
