RX-360SH

Model: RX-360SH
Type: Total sulfur analyzer for petroleum products by energy dispersive X-ray fluorescence method
Conforming Standards: ISO 8754, ASTM D4294-03, etc.
Number Of Test: One (1)
Sample Volume: 3 - 5ml
Measuring Range: 0-6,00wt%
Repeatability: *ASTM D4294 designates the repeatability in the range (r). In terms of standard deviation, 5ppm (check PDF brochure)
C/H Ratio Compensation: Automatic with 0.003wt% max of compensation error when a 1wt% sample is tested.
Measuring Time: 10-990sec with a 10sec increment. 1-99 times.
Calibration: Automatic two point calibration; Manual two point calibration; Automatic multiple-point calibration (up to 10 points); Manual multiple-point calibration (up to 10 points)
X-Ray Source: X-ray tube operated at 7kV-0.15mA
Sample Cup: 2-piece Teflon cup with disposable Mylar film
Printer: Built-in impact dot matrix printer (paper roll width 57mm)
Display: LCD (20 characters x 4 lines)
X-Ray Leakage: 0.6 micro Sv/Hr or less on instrument surface
Data Output: 1x RS-232C
Oparating Temperature/Humidity: 10-30°C with a temperature drift within 10°C in a day. rH to be within 80%.
Power Supply: DC12V (with the provided AC Adapter or optional 12VDC cord with lighter plug)
Safety: Interlock mechanism against accidental X-ray leakage
Dimensions/Weight: Test head: 420W x 350D x140H (mm)/11kg; AC Adapter: 50W x 115D x 25H (mm)/0.25kg

IQ/OQ/PQ Qualification: Yes, possible

Raspoloživost: Na lageru

Detalji

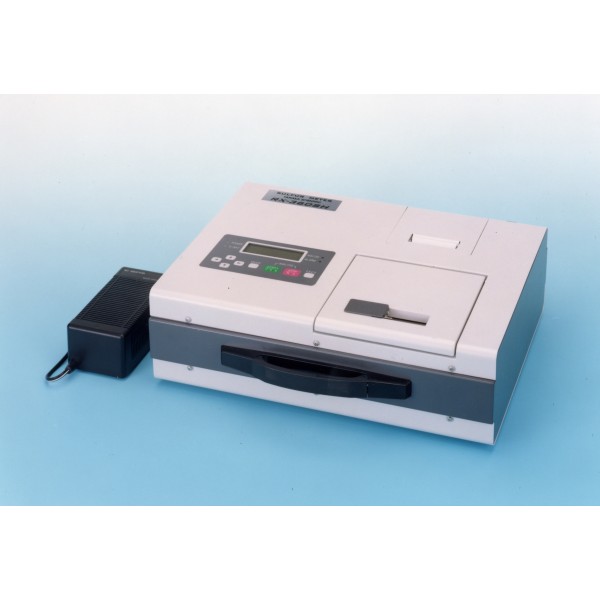

X-RAY SULFUR METER model RX-360SH

RX-360SH determines total sulfur in petroleum products, such as gas oil, fuel oil, crude oil and naphtha, using energy dispersive X-ray fluorescence (EDXRF) method, which is an accurate, non-destructive, economical and yet quick method prescribed in ISO 8754 and ASTM D4294-03.

HIGH PRECISION: Digital pulse height analysis is automatically carried out at each measurement to adjust the system. This innovative system design has further improved the precision.

WIDE RANGE OF SAMPLES: Patented "Diamond Parameter Method" accurately compensates for measurement error caused by different carbon/hydrogen(C/H) ratio of individual sample. This state-of-art technology enabled measurement of wide range of samples of different C/H ratios with uncompromising precision.

AMBIENT TEMPERATURE AND BAROMETRIC PRESSURE COMPENSATION: Compensation for ambient temperature and barometric pressure are made automatically to drastically minimize the drift.

AUTOMATIC CALIBRATION: Set certified calibration standards and start automatic calibration program to carry out automatic calibration. Either multiple point calibration at up to 10 points or two points calibration starts.

EASY OPERATION: Minimum numbers of membrane switches are located on the operation panel along with an LCD for easy dialogue type operation.

COMPACT DESIGN/2-WAY POWER SOURCE: Compact design unit with carrying handle and 2-way power source (100-240VAC*1 or 12VDC battery*2
) allows such applications as spot-checking in the field.
*1: When used with the provided AC Adapter
*2: When used with optional 12VDC cord with lighter plug

LOWER RUNNING COST: The Teflon sample cell is permanent and used with a small piece of disposable Mylar film. The only other consumable is the printing paper, making the running cost at minimal.

Dodatne Informacije

ŠIFRA RX-00-004
Proizvođač Tanaka
Tip instrumenta Sulfur Meter
Podgrupa instrumenta EDXRF Sulfur Meter
