Multi-Room WIM-4

Model: WIM - 4
Osvetljenje: Ne
Cirkulacija: Forsirana konvencija i ventilator
Kapacitet: 125 Lit. x4 komore
Temperaturni opseg: Ambijentalna temperatura +5°C do 70°C
Temperaturna preciznost: ±0.2°C na 37°C
Temperaturna uniformnost: ±0.3°C na 37°C, ±0.7°C na 50°C
Temperaturni senzor: PT100
Vreme zagrevanja: 15 min. do 37°C, 30 min. do 50°C
Vreme oporavka (vrata otvorena 30 sekundi): 8 min. do 37°C, 10 min. do 50°C
Snaga grejača/Potrošnja: 500 W x 4kom
Kompresor: Nema
Tajmer i alarm: 99hr 59min (mogućnost odloženog startovanja / neprekidnog rada), status grešaka i kraj tajmera
Displej: Digitalni LCD sa pozadinskim osvetlenjem
Kontroler: Digitalni "Fuzzy" kontroler sa multifunkcionalnim tasterom "Jog-Shuttle Switch" ("Turn+Push")
Unutrašnja vrata: sa četvorostruko zaštićenim unutrašnjim staklenim vratima
Police: U kompletu se isporučuju 8kom čeličnih polica sa zaštitom od teflona (2kom x 4 komore)
Maksimalno dozvoljeno opterećenje: Ukupno opterećenje 128 kg (16kg x 8 polica)
Zaštitni sistemi: Zaštita od previsoke temperature i zaštita od visoke/niske struje, senzor za detektovanje grešaka
Materijal: Interno: Nerđajući čelik (#304), Eksterno: zaštićeni čelik
Interne dimenzije (ŠxDxV) (mm): 500x500xh500 mm (x4 komore)
Eksterne dimenzije (ŠxDxV) (mm): 1,655x845xh1,710 mm
Neto masa: 343kg
Dimenzije pakovanja (WxDxH) (mm): 1,900x1,050x1,950
Bruto masa: 441 kg
Maksimalna snaga: 2.6 kW
Napajanje: Jednofazno napajanje, AC 120V, 60Hz ili AC 230V, 50/60Hz

IQ/OQ/PQ kvalifikacija: Da, moguća

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

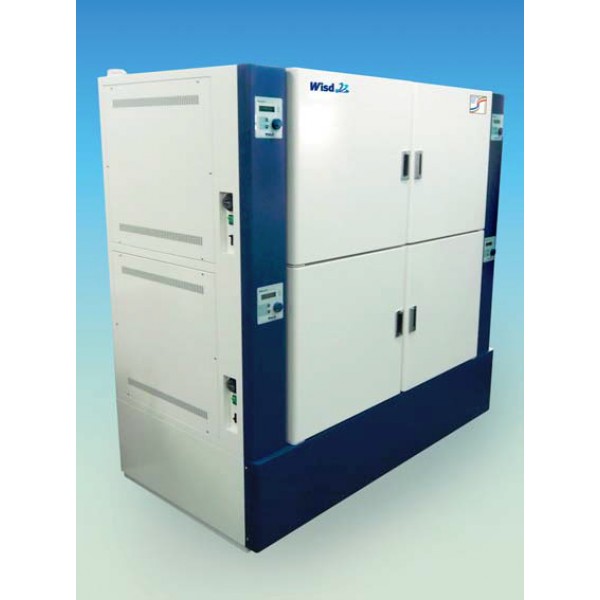

Multi - Room Incubator, "WIM", Forced Convection - type, 125 Lit. x4 Rooms, with Certi. & Traceability with 8xWire Shelves, Digital Fuzzy Control, Independent Chamber Control, Max. Temp. Uniformity & Accuracy, up to 70°C

with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery - information, and Traceable Data Base System
4x125Lit Rooms: Each Chamber has an Independent Fuzzy Controller for Different Temperature and Time Control
Patented Jog - Shuttle Control System
UL / CUL Certified
CE Certified
PL (Product Liability) Insurance
Variable Application: Microorganism Culture, Animal & Plant Cell Culture, Constant Temperature and Germination
Digital Fuzzy Control System Implementing Superior Temperature Accuracy.
High - Quality LCD with Back - Light Function
Forced Convection Air Flow by Silent Fan Motor Implements the Highest Uniformity of Temperature in Each Chamber

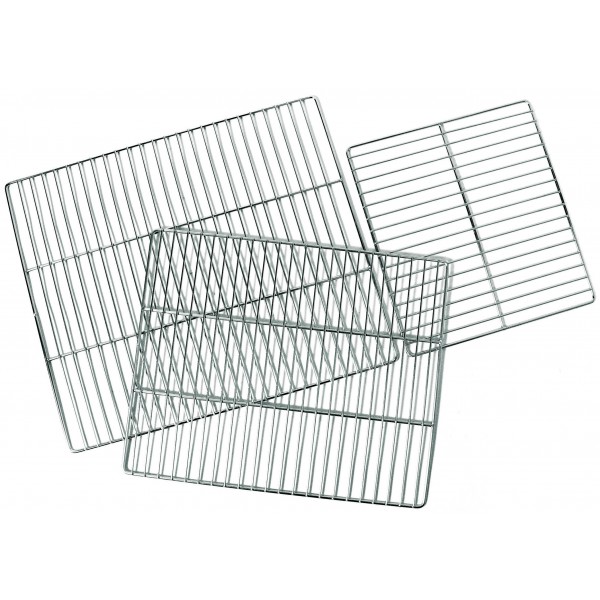

Stainless steel Chamber and Teflon - Coated Shelves(2ea for Each Chamber)
Corrosion Resistance
Inner Tempered Glass Door Enables an User to Observe the Samples without Interruption of Incubation
Over Temperature & Over Current Protection, Sensor Error Detection and Leakage Breaking.
Storage Function for Set Values of Temperature and Time
Locking Mode Supported for Experimental Safety (Input to Jog - Shuttle can be Disabled)

Validation (IQ, OQ) Service - Possible
