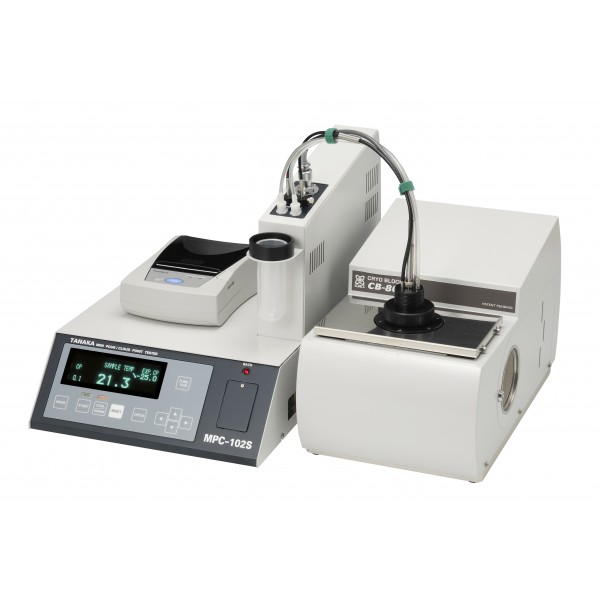

MPC-102S

Model: MPC-102S
Test Standards: PP: ASTM D6749, ASTM D97, ISO 3016; CP: ASTM D7683, ASTM D2500, ISO 3015
Specimen Volume: 4.5ml
Measurement Modes: Selectable from various modes. 1.CP mode (0.1 or 1.0 °C intervals) 2.PP mode: Programmed by the user. Programmable parameters are: *Amount of applied air pressure for PP detection, to accommodate different sample types: L(low) for diesel fuels, H(high) for lube oils, VH(very high) and UH (ultra high) for residual fuels and similar samples. *Testing intervals: 1.0°C, 2.5°C, or 3.0°C (In total, 4x3=12 modes for PP.) 3.CP/PP modes: CP is determined and then PP. PP detection is programmable by the user with the same parameters as PP modes.
Measuring Range: -65°C to +51°C
Sample Automatic Pre-Heating: Automatic preheating at either +45°C or EPP+10°C. (EPP=Expected Pour Point)
Display: Big digital display on VFD for showing real time parameters (sample temperature, bath temperature, test results).
EPP Setting: EPP (Expected Pour Point) needs to be set prior to test starts.
Specimen Cup: Cylindrical glass test jar with 4.5ml sample volume with reflex seal on the bottom for cloud point test.
Sensors: Compound type sensor assembly for PP and CP. PP detected by air pressure method (patented). CP detected photo-electrically. PT100 temp. sensors.
Sample Cooling Rate: As standard, 4°C/min. till EPP+40°C, and 1°C/min. Thereafter cooling profile is programmable.
Safety Shutdown: As hot side of TED reaches 60°C while preheating, warning buzzer beeps and heating stops.
Data Output: RS-232C 1 channel (for PC or Optional Printer)
Power Supply: 100VAC to 240VAC 50/60Hz
Power Consumption: 80 Wh for 1 test (about 1 hour), 30g CO2 (@0,378 Kg CO2 / 1000 Wh)
Operating Ambiental Temperature: 10 to 35°C
Size (W x D x H): 300 x 460 x 320 (mm)
Weight: 11 Kg

Bath Model: CB-80C
Bath Temperature Range: -70°C to +80°C
Bath Temperature Control: PID control with 2 points of revision functions
Bath Size (W x D x H): 222 x 407 x 238 (mm)
Bath Weight: 13 Kg

IQ/OQ/PQ Qualification: Yes, possible
