Model: VFPP-60051P
Indicator: T51P
Material and Protection: ABS plastic
Weighing Units: kg, g, lb, oz, lb:oz, t, custom
Displays: Backlit LCD, 25mm high, 6-digit, 7-segment with 3 LED checkweigh indication
Interface: Built-in RS232 and external input (optional 2nd RS232, RS422/485, AC and DC relay kits)
Power: Internal switching power supply (100 - 240 VAC / 50-60 Hz) / Optional rechargeable NiMH battery kit, Line cord or 6 "C" dry cell batteries
Other Features: Counting, percent weighing, checkweighing, dynamic weighing, display hold, Zero calibration, Geo gravity adjustment, GMP, time-date, Auto Tare, temporary display of higher resolution

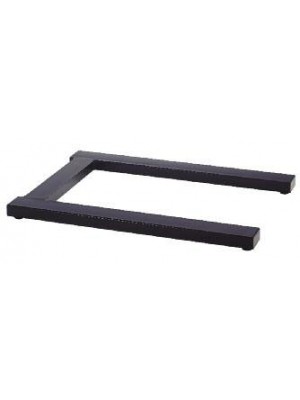

Platform Model: VFPP-600
Material: Mild steel, black painted, non-treaded surface
External Dimensions: 1,256L x 840W x 78H mm
Model Capacity: 600Kg
Maximum Safe Static Load - Central Load: 1600Kg
Maximum Safe Static Load - Side Load: 800Kg
Maximum Safe Static Load - Corner Load: 400Kg
Feet: 4 x swivel design, stainless steel with rubber caps, adjustable height
Load Cell Model: 4 x Ohaus SBH, double-bending beam, OIML approved
Load Cell Capacity Emax: 500Kg
Load Cell Safe Overload Limit: 150% of Emax
Load Cell Material: Stainless steel, electro-polished
Load Cell Protection: IP68, laser-weld hermetically sealed
Load Cell Output Impedance: 350 Ω ± 1 Ω
Load Cell Excitation Voltage: 5V to 15V, DC/AC
Load Cell Cable Length: 3.1 m
Load Cell EC Type Approval: TC6114
Junction Box Material, Protection: Stainless steel (AISI 304), IP67
Junction Box Dimensions: 193L x 75W x 45H mm, with heavy duty cable 5m length
Indicator: T51P
Material and Protection: ABS plastic
Weighing Units: kg, g, lb, oz, lb:oz, t, custom
Displays: Backlit LCD, 25mm high, 6-digit, 7-segment with 3 LED checkweigh indication
Interface: Built-in RS232 and external input (optional 2nd RS232, RS422/485, AC and DC relay kits)
Power: Internal switching power supply (100 - 240 VAC / 50-60 Hz) / Optional rechargeable NiMH battery kit, Line cord or 6 "C" dry cell batteries
Other Features: Counting, percent weighing, checkweighing, dynamic weighing, display hold, Zero calibration, Geo gravity adjustment, GMP, time-date, Auto Tare, temporary display of higher resolution
IQ/OQ/PQ service: Yes, possible
