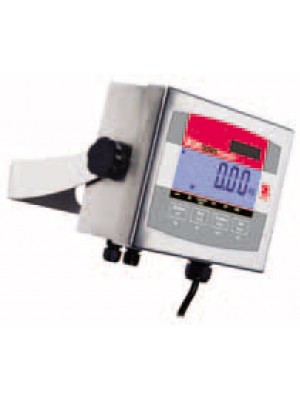

Model: T32XW
Construction: 304 stainless steel NEMA 4X / IP65 PCB enclosure 304 stainless steel wall mount bracket with adjustment knobs
Housing Dimensions (W x D x H): 212 x 71 x 149 mm
Full Scale Capacity Range: 5 to 20,000 kg / lb
Max Displayed / Approval Resolution: 1:20,000d / 1:6000e
Weighing Units: kg, lb, g, oz, lb:oz
Extra Functions/Modes: Parts Counting
Minimum Average Piece Weight: 1d
Sample size: 5, 10, 20, 50, 100, 200 (user selectable)
Weight Display: 25mm/1" High, 6-digit, 7-segment LCD with high-contrast white LED backlight
Keyboard: 4 function membrane switches, raised, tactile
Load Cell Drive: up to 4 x 350 Ω Load Cells
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V (min 1 µV/d)
Stabilization Time: within 2 seconds
Auto-Zero Tracking: Off, 0.5, 1 or 3 divisions
Key Zeroing Range: 2% or 100% of capacity
Span Calibration: 5 kg/lb to 100% of capacity
Interface: Bi-directional RS232C
Power: 100-240 VAC / 50/60 Hz universal power supply, hardwire cord
Battery: Internal rechargeable sealed lead acid battery, 58-hour typical operation with full charge
Operating Temperature Range: -10°C to 40°C
Humidity Range: 80% for temperature up to 31°C, decreasing linearly to 50% at 40°C, non-condensing
Net Weight: 3.2kg
Shipping Weight: 4.4kg
Shipping Dimensions (W x D x H): 271 x 234 x 182 mm
Other Features: Environmental filtering, geographical gravity adjustment

IQ/OQ/PQ service: Yes, possible

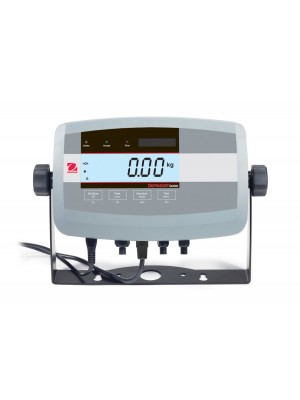

Model: T51P
Construction: ABS plastic with internal reinforcing ribs, reversible rear housing, painted steel wall mount bracket with adjustment knobs
Full Scale Capacity Range: 1 to 999,950 kg/lb
Max Displayed Resolution: 1:30,000d
Maximum Approved Resolution: 1:10,000e / Dual range 1:3000e
Maximum Counting Resolution: 1:300,000d
Min Average Piece Weight (APW): 0.1d
Weighing Units: kg, lb, g, oz, lb:oz, tonnes, custom
Weight Display: 6-digit, 7-segment LCD, 25mm High digits, with high-contrast white LED backlight
Checkweigh Indication: 3-color LED with configurable beeper signal
Keyboard: 4 function membrane switches, with positive feedback
Extra Functions/Modes: Display Hold, Dynamic Weighing, Counting, Checkweighing, Percent Weighing
Other Software Features: Zero calibration, Calibration test, Geographical gravity adjustment, Auto-tare, Auto-tare on-accept, GMP Time-Date, Key function lock, temporary display of higher resolution
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V
Load Cell Drive: up to 8 x 350 Ω load cells
Stabilization Time: within 2 seconds
Zeroing Range: 2% or 100% of capacity
Span Calibration: 1 kg/lb to 100% of capacity
Interface: Built-in RS232 and external input / Optional RS422/485 / optional AC relay / Opional. DC relay / optional second RS232
Operating Temperature Range: -10°C to 40°C
Relative Humidity Range: Maximum 80% up to 31°C, decreasing linearly to 50% at 40°C
Power: 100-240 VAC / 50-60 Hz, internal universal power supply, line cord, 6 C-type dry cell batteries (80-hr. typical operation), optional internal rechargeable NiMH battery (30-hr. typical operation)
Enclosure Dimensions: 260W x 71D x 168H mm
Overall Dimensions (inc. bracket): 316W x 71D x 224H mm
Net / Shipping Weight: 1.5 kg / 2.3 kg
Shipping Dimensions: 330W x 240D x 180H mm

IQ/OQ/PQ service: Yes, possible

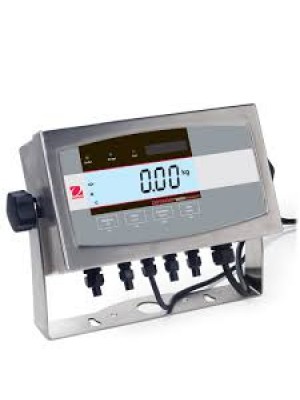

Model: T51XW
Construction / Protection: 304 stainless steel NEMA 4X / IP66 enclosure, 304 stainless steel wall mount bracket with adjustment knobs
Full Scale Capacity Range: 1 to 999,950 kg/lb
Max Displayed Resolution: 1:30,000d
Maximum Approved Resolution: 1:10,000e / Dual range 1:3000e
Maximum Counting Resolution: 1:300,000d
Min Average Piece Weight (APW): 0.1d
Weighing Units: kg, lb, g, oz, lb:oz, tonnes, custom
Weight Display: 6-digit, 7-segment LCD, 25mm High digits, with high-contrast white LED backlight
Checkweigh Indication: 3-colour LED with configurable beeper signal
Keyboard: 4 function membrane switches, with positive feedback
Extra Functions/Modes: Display Hold, Dynamic Weighing, Counting, Checkweighing, Percent Weighing
Other Software Features: Zero calibration, Calibration test, Geographical gravity adjustment, Auto-tare, Auto-tare on-accept, GMP Time-Date, Key function lock, temporary display of higher resolution
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V
Load Cell Drive: up to 8 x 350 Ω load cells
Stabilization Time: within 2 seconds
Zeroing Range: 2% or 100% of capacity
Span Calibration: 1 kg/lb to 100% of capacity
Interface: Built-in RS232 and external input / Optional RS422/485 / optional AC Relay / optional DC relay / optional 2^nd RS232
Operating Temperature Range: -10°C to 40°C
Relative Humidity Range: Maximum 80% up to 31°C, decreasing linearly to 50% at 40°C
Power: 100-240 VAC / 50-60 Hz, internal universal power supply, hard-wire cord, optional internal rechargeable NiMH battery (30-hr. typical operation)
Enclosure Dimensions: 262W x 76D x 149H mm
Overall Dimensions (inc. bracket): 315W x 76D x 212H mm
Net / Shipping Weight: 3.5 kg / 4.3 kg
Shipping Dimensions: 330W x 240D x 180H mm

IQ/OQ/PQ service: Yes, possible

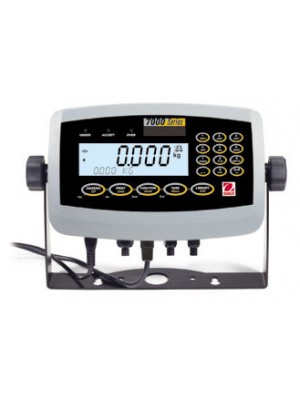

Model: T71P
Construction: ABS plastic with internal reinforcing ribs, reversible rear housing, painted steel wall mount bracket with adjustment knobs
Full Scale Capacity Range: 1 to 999,950 kg/lb
Max Displayed Resolution: 1:50,000d
Maximum Approved Resolution: 1:10,000e / Dual range 1:3000e
Maximum Counting Resolution: 1:500,000d
Min Average Piece Weight (APW): 0.1d
Weighing Units: kg, lb, g, oz, lb:oz, tonnes, custom
Weight Display: 2-line LCD with 6-digit, 7-segment, 25mm high primary digits, and high-contrast LED backlight
Checkweigh Indication: 3-color LED with configurable beeper signal
Keyboard: 17-key membrane switches (including alpha-numeric keypad), with positive tactile and audible feedback
Extra Functions/Modes: Dual range, Counting, Dynamic, Display Hold, Percent, Checkweighing/Count, Accumulation and Statistics, 256 Library memory, Five-language display
Other Software Features: Zero calibration, Calibration test, 5-point Linearity, Geographical gravity adjustment, Auto-tare, Auto-tare on-accept, GMP Time-Date, Key function lock, Temporary display of 10x resolution
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: Up to 3 mV/V
Load Cell Drive: Up to 8 x 350 Ω load cells
Stabilization Time: Within 2 seconds
Zeroing Range: 2% or 100% of capacity
Span Calibration: 1 kg/lb to 100% of capacity
Interface: Built-in dual scale connection, RS232 and external input / Optional RS422/485 / AC relay / DC relay / second RS232 / Alibi memory
Operating Temperature Range: -10°C to 40°C
Relative Humidity Range: Maximum 80% up to 31°C, decreasing linearly to 50% at 40°C
Power: 100-240 VAC / 50-60 Hz, internal universal power supply, line cord, 6 C-type dry cell batteries (80-hr. typical operation), optional internal rechargeable NiMH battery (30-hr. typical operation)
Enclosure Dimensions: 260W x 71D x 168H mm
Overall Dimensions (inc. bracket): 316W x 71D x 224H mm
Net / Shipping Weight: 1.5 kg / 2.3 kg
Shipping Dimensions: 330W x 240D x 180H mm

IQ/OQ/PQ service: Yes, possible

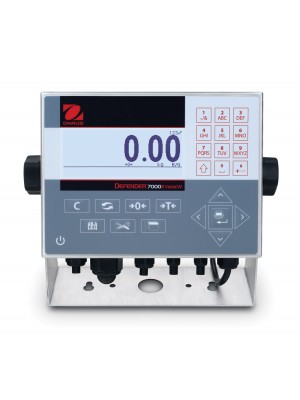

Model: T72XW
Opseg: Up to 998000 (t, kg, g or lb)
Maximum Displayed Resolution: 1:50,000
Maximum Approved Resolution: 1:6,000 (EC, OIML)
Weighing Units: kg, lb, oz, lb-oz, g, ton, t
Weighing Modes: Animal Weighing, Parts Counting, Checkweighing
Display: Transflective graphic LCD with white backlight, 240 x 96 pixels
Under/Accept/Over indicators: 3 Zones, up to 25 targets
Controls: 8 function, 4 navigation, 12 alpha numeric membrane switches
Ingress Protection: IP66
Load Cell Excitation Voltage: 10 VDC
Load Cell Drive: Up to 10 x 350 Ω load cells
Load Cell Input Sensitivity: Up to 3 mV/V
Stabilization Time: Within 2 seconds
Auto-Zero Tracking: Off, 0.5d, 1d, 3d or 10d
Zeroing Range: +/-2% or +/-20% of capacity
Interfaces: RS232 (included), SD card (included), Ethernet (optional), USB with Discrete I/O (optional), Second RS232/RS485 (optional)
Operating Temperature Range: -10 °C to 40 °C
Main Power: 100-240 V to 0.15 A 50/60 Hz internal power supply
Housing Dimensions (W x D x H): 283 x 86 x 232 mm
Net Weight: 3 kg
Shipping Weight: 3.4 kg
Shipping Dimensions: 324W x 240D x 187H mm

IQ/OQ/PQ service: Yes, possible

Model: D30BR
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan, painted carbon steel tubular frame, non-slip rubber leveling feet
Net Weight: 9 kg
Shipping Weight: 11 kg
Load Cell Protection / Class*: IP67, aluminum, single point / C3
Capacity (max) x Readability (d): 30 kg x 5 g
Maximum Resolution: 1:6000
Capacity (max) x Approvable Readability (e): 30 kg x 10 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 50 kg
Load Cell Cable: 2m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 355 x 305 x 123 x 75 x 380 mm
Shipping Dimensions (W x D x H): 642 x 497 x 212 mm

IQ/OQ/PQ service: Yes, possible

Model: D60BR
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan, painted carbon steel tubular frame, non-slip rubber leveling feet
Net Weight: 9 kg
Shipping Weight: 11 kg
Load Cell Protection / Class*: IP67, aluminum, single point / C3
Capacity (max) x Readability (d): 60 kg x 10 g
Maximum Resolution: 1:6000
Capacity (max) x Approvable Readability (e): 60 kg x 20 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 100 kg
Load Cell Cable: 2m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 355 x 305 x 123 x 75 x 380 mm
Shipping Dimensions (W x D x H): 642 x 497 x 212 mm

IQ/OQ/PQ service: Yes, possible

Model: D60BL
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan, painted carbon steel tubular frame, non-slip rubber leveling feet
Net Weight: 16 kg
Shipping Weight: 19 kg
Load Cell Protection / Class*: IP67, aluminum, single point / C3
Capacity (max) x Readability (d): 60 kg x 10 g
Maximum Resolution: 1:6000
Capacity (max) x Approvable Readability (e): 60 kg x 20 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 100 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 550 x 420 x 136 x 80 x 575 mm
Shipping Dimensions (W x D x H): 857 x 564 x 225 mm

IQ/OQ/PQ service: Yes, possible

Model: D150BL
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan, painted carbon steel tubular frame, non-slip rubber leveling feet
Net Weight: 16 kg
Shipping Weight: 19 kg
Load Cell Protection / Class*: IP67, aluminum, single point / C3
Capacity (max) x Readability (d): 150 kg x 20 g
Maximum Resolution: 1:7500
Capacity (max) x Approvable Readability (e): 150 kg x 50 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 300 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 550 x 420 x 136 x 80 x 575 mm
Shipping Dimensions (W x D x H): 857 x 564 x 225 mm

IQ/OQ/PQ service: Yes, possible

Model: D150BX
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan, painted carbon steel tubular frame, non-slip rubber leveling feet
Net Weight: 28 kg
Shipping Weight: 32 kg
Load Cell Protection / Class*: IP67, aluminum, single point / C3
Capacity (max) x Readability (d): 150 kg x 20 g
Maximum Resolution: 1:7500
Capacity (max) x Approvable Readability (e): 150 kg x 50 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 300 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 650 x 500 x 143 x 90 x 675 mm
Shipping Dimensions (W x D x H): 1,022 x 687 x 247 mm

IQ/OQ/PQ service: Yes, possible
