Industrijska oprema

Model: V22XWE30T
Opseg: 30000g
Rezolucija: 5g
Maksimalna rezolucija: 1: 6000
Jedinice merenja: g, kg, lb, oz, lb:oz
Aplikacije: merenje mase, provera mase pakovanja
Tastatura: Četiri mehanička tastera od polikarbonata sa natpisima
Kalibracija: Digitalna eksterna kalibracija celog opsega
Displej: 7 segmenta, 6 cifara / visine 20.5 mm, sa crvenim LED osvetlenjem, dupli displej
Indikacija displeja: stabilnost, centriranje nule (vraćanje na nulu), neto masa, status baterije
Opseg tariranja: u celom opsegu
Opseg nule: 4% - 20% od kapaciteta
Vreme stabilizacije: ≤0.5 sekundi
Preopterećenje opsega: 150% od ukupnog opsega
Opseg radne temperature: -10°C do 40°C, 10% do 90%, relativne vlažnosti ne kondenzujuće sredine
Materijal od kojih je napravljena vaga: Kućište i merna ploča od nerđajućeg čelika
Napajanje: 12V DC 0.84A, AC univerzalni ispravljač (100-220VAC / 50/60Hz) koji se isporučuje u kompletu
Radni vek baterija: Interna punjiva baterija, zapečaćena i zaštićena, 50 sati neprekidnog rada
Zaštita vage od spoljnih prodora: IPX8 zaštita protiv probijanja vode
Dimenzije merne ploče: 190 x 242 mm
Dimenzije (Š x D x V): 288 x 256 x 124 mm
Dimenzije transportnog pakovanja (Š x D x V): 410 x 370 x 220 mm
Neto težina: 3.9 kg
Masa transportnog pakovanja: 4.9 kg

IQ/OQ/PQ kvalifikacija: Da, moguća

Model: V31XH202
Opseg (g): 200
Rezolucija (g): 0.01
Jedinice merenja: lb, decimalni ili frakcioni oz, lb:oz, fluid oz (vode), kg, g
Aplikacije: Obično merenje mase, procentualno merenje mase, kombinovana tara/nula, specifična gravitacija (S)
Tasteri: 3 mehanička tastera (1 levo; 2 desno)
Kalibracija: Eksterna digitalna kalibracija celog opsega
Displej: 7 segmenata, 6 cifara, 20mm visok LCD ekran sa belim LED osvetlenjem
Indikatori na displeju: Centriranje nule (vraćanje na nulu), stabilnost, iznad/ispod maksimalnog/minimalnog opterećenja, jedinica merenja i status baterije
Opseg tariranja: U celom opsegu
Vreme stabilizacije: ≤3 sekunde
Automatsko vraćanje na nulu: Isključeno, 0.5, 1 ili 3 podeoka
Opseg radne temperature: 0°C do 40°C na 10% do 95% relativne vlažnosti, ne kondenzujuće sredine, do 4000m nadmorske visine
Napajanje: 9 VDC 0.5A AC ispravljač, 50/60 Hz (isporučuje se u kompletu) ili četiri 1.5 volt "C" baterije (ne isporučuju se u kompletu)
Potrošnja baterija: 50 sati sa alkalnim baterijama
Dimenzije (D x Š x V): 218 x 186 x 77 mm
Dimenzije merne ploče (D x Š): 120 mm prečnik
Dimenzije transportnog pakovanja (Š x D x V): 325 mm x 252 mm x 140 mm
Neto masa: 1.2 kg
Masa transportnog pakovanja: 2 kg
Zaštita kućišta od spoljašnjih uticaja: n/a

IQ/OQ/PQ kvalifikacija: Da, moguća

Model: V31XH2
Opseg (g): 2000
Rezolucija (g): 0.1
Jedinice merenja: lb, decimalni ili frakcioni oz, lb:oz, fluid oz (vode), kg, g
Aplikacije: Obično merenje mase, procentualno merenje mase, kombinovana tara/nula, specifična gravitacija (S)
Tasteri: 3 mehanička tastera (1 levo; 2 desno)
Kalibracija: Eksterna digitalna kalibracija celog opsega
Displej: 7 segmenata, 6 cifara, 20mm visok LCD ekran sa belim LED osvetlenjem
Indikatori na displeju: Centriranje nule (vraćanje na nulu), stabilnost, iznad/ispod maksimalnog/minimalnog opterećenja, jedinica merenja i status baterije
Opseg tariranja: U celom opsegu
Vreme stabilizacije: ≤3 sekunde
Automatsko vraćanje na nulu: Isključeno, 0.5, 1 ili 3 podeoka
Opseg radne temperature: 0°C do 40°C na 10% do 95% relativne vlažnosti, ne kondenzujuće sredine, do 4000m nadmorske visine
Napajanje: 9 VDC 0.5A AC ispravljač, 50/60 Hz (isporučuje se u kompletu) ili četiri 1.5 volt "C" baterije (ne isporučuju se u kompletu)
Potrošnja baterija: 50 sati sa alkalnim baterijama
Dimenzije (D x Š x V): 218 x 186 x 77 mm
Dimenzije merne ploče (D x Š): 146 x 158 mm
Dimenzije transportnog pakovanja (Š x D x V): 325 mm x 252 mm x 140 mm
Neto masa: 1.3 kg
Masa transportnog pakovanja: 2.1 kg
Zaštita kućišta od spoljašnjih uticaja: n/a

IQ/OQ/PQ kvalifikacija: Da, moguća

Model: V41PWE15T
Opseg x Rezolucija: 15 kg x 0.002 kg, 15000 g x 2 g
Maksimalna prikazana rezolucija (d): 1:7,500
Overen opseg x Rezolucija: 15 kg x 0.005 kg, 15000 g x 5 g
Overene rezolucija: 1:3,000
Jedinice merenja: g, kg
Aplikacije: Merenje mase, procentualno merenje mase, provera mase pakovanja, sabiranje/akumuliranje
Tasteri: Četiri mehanička tastera od polikarbonata sa natpisima
Kalibracija: Eksterna digitalna kalibracija celog opsega
Displej: 7 segmenata, 6 cifara, 20.5 mm / 0.8 inča visina, crveni LED dupli displej
Indikatori na displeju: Stabilnost, centriranje nule (vraćanje na nulu), neto masa, status baterije, IR senzor i akumulacija, provera mase pakovanja sa 3 LED svetla svetlosna indikatora (žuto, zeleno, crveno) sa podesivim operacijama
IR Senzor: Sa zadnje strane za funkciju tare
Opseg tariranja: U celom opsegu
Opseg nule: 4% - 20% od kapaciteta
Vreme stabilizacije: ≤0.5 sekundi
Dozvoljeno preopterećenje: 150% od ukupnog opsega
Ambijentalni uslovi rada: -10°C do 40°C, 10% do 90% relativne vlažnosti ne kondenzujuće sredine
Konstrukcija: Merna platforma od nerđajućeg čelika, ABS kućište
Napajanje: 12V DC 0.84A, AC univerzalni ispravljač (100 - 220V AC / 50 -60Hz) i ugrađena interna punjiva baterija koja se isporučuje sa vagom
Vreme trajanja baterije: Tipično oko 50 sati neprekidnog rada ako je punjena 12 sati
Zaštita kućišta od spoljašnjih uticaja: IP68 zaštita
Dimenzije merne ploče: 190 x 242 mm
Dimenzije vage (Š x D x V): 256 x 280 x 121 mm
Dimenzije transportnog pakovanja (Š x D x V): 410 x 370 x 220mm
Neto masa: 3.0 kg
Masa transportnog pakovanja: 4.0 kg

IQ/OQ/PQ kvalifikacija: Da, moguća

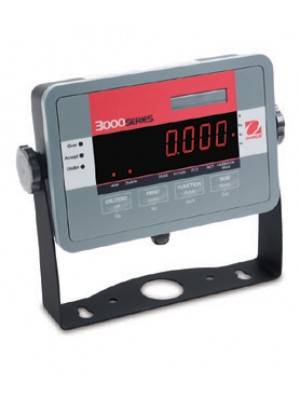

Model: T32ME
Full Scale Capacity Range: 5 to 20,000 lb or kg
Displayed Resolution: 1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved
Construction: ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket
Weight Display: 6-digit, 7-segment red LED 0.8in / 20mm digit height
Keyboard: 4-button mechanical switches, raised tactile keys
Weighing Units: lb, oz, lb-oz, kg, g
Extra Functions/Modes: Parts Counting, Display Hold, Checkweighing, Weight Accumulation
Checkweigh Display: 3 LED: Red-green-yellow (Over-Accept-Under)
Minimum Average Piece Weight: 1d
Load Cell Excitation / Input Sensitivity: 5V DC / up to 3 mV/V (min 1 µV/d)
Load Cell Drive: Up to four 350 load cells
Stabilization Time: Within 2 seconds
Zeroing Range: 2% or 100% of capacity
Auto-Zero Tracking: Off, 0.5, 1 or 3 scale divisions
Span Calibration: 5 lb or 5 kg to 100% capacity
Interface: Bidirectional RS232C
Operating Temperature Range: 14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperature up to 31°C / 88°F, decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing
Power: 9-12 VDC, 0.5A, external AC adapter
Enclosure Dimensions (W x D x H) (check pictures): 7.8 x 1.8 x 5.2 in / 198 x 46 x 132 mm
Net Weight: 1.5 lb / 0.7 kg
Shipping Dimensions (W x D x H): 10.7 x 9.2 x 7.2 in / 271 x 234 x 182 mm
Shipping Weight: 4.0 lb / 1.8 kg

IQ/OQ/PQ service: Yes, possible

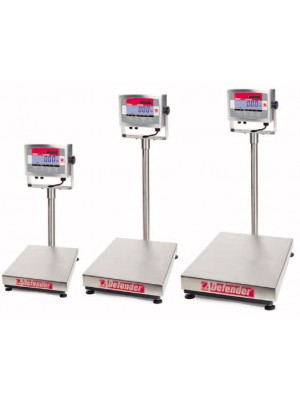

Model: D60VL
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan and frame, non-slip rubber leveling feet
Net Weight: 18 kg
Shipping Weight: 21 kg
Load Cell Protection / Class*: IP67, stainless steel, single point / C3
Capacity (max) x Readability (d): 60 kg x 10 g
Maximum Resolution: 1:6000
Capacity (max) x Approvable Readability (e): 60 kg x 20 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 100 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 550 x 420 x 136 x 80 x 575 mm
Shipping Dimensions (W x D x H): 857 x 564 x 225 mm

IQ/OQ/PQ service: Yes, possible

Model: D150VL
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan and frame, non-slip rubber leveling feet
Net Weight: 21 kg
Shipping Weight: 24 kg
Load Cell Protection / Class*: IP67, stainless steel, single point / C3
Capacity (max) x Readability (d): 150 kg x 20 g
Maximum Resolution: 1:7500
Capacity (max) x Approvable Readability (e): 150 kg x 50 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 300 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 550 x 420 x 136 x 80 x 575 mm
Shipping Dimensions (W x D x H): 857 x 564 x 225 mm

IQ/OQ/PQ service: Yes, possible

Model: D150VX
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan and frame, non-slip rubber leveling feet
Net Weight: 33 kg
Shipping Weight: 37 kg
Load Cell Protection / Class*: IP67, stainless steel, single point / C3
Capacity (max) x Readability (d): 150 kg x 20 g
Maximum Resolution: 1:7500
Capacity (max) x Approvable Readability (e): 150 kg x 50 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 300 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 650 x 500 x 143 x 90 x 675 mm
Shipping Dimensions (W x D x H): 1,022 x 687 x 247 mm

IQ/OQ/PQ service: Yes, possible

Model: D300VX
Indicators: Check specification for T31P and T32XW indicators
Construction: 304 stainless steel pan and frame, non-slip rubber leveling feet
Net Weight: 33 kg
Shipping Weight: 37 kg
Load Cell Protection / Class*: IP67, stainless steel, single point / C3
Capacity (max) x Readability (d): 300 kg x 50 g
Maximum Resolution: 1:6000
Capacity (max) x Approvable Readability (e): 300 kg x 100 g
Approval Resolution (n max): 1:3000
Load Cell Capacity: 500 kg
Load Cell Cable: 2.3m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 125% of rated scale capacity
Base Dimensions (A x B x C x D x E): 650 x 500 x 143 x 90 x 675 mm
Shipping Dimensions (W x D x H): 1,022 x 687 x 247 mm

IQ/OQ/PQ service: Yes, possible

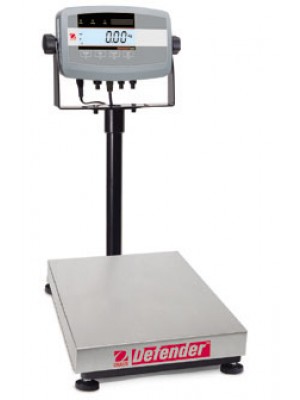

Model: D15HR
Capacity (Max): 15kg
Construction: 304 stainless steel pan, painted carbon steel frame, non-slip rubber leveling feet
Leveling Components: Externally visible level bubble and adjustable leveling feet
Operating Temperature : -10°C to 40°C
Safe Overload Capacity: 150% of rated capacity
Load Cell Type: IP67, aluminum, single point / C3
Load Cell Cable: 2m L x 6-wire
Load Cell Rated Output: 2 mV/V ± 10%
Load Cell Excitation Voltage: Maximum 20V (AC/DC) / Recommended 5to15V (AC/DC)
Load Cell Input / Output Resistance: 410 ± 10 Ωs / 350 ± 4 Ωs
Base Dimension (AxBxCxDxE) (mm): 355 x 305 x 95 x 50 x 380
Shipping Dimensions (mm): 490L x 410W x 440H
Net / Shipping Weight: 9 kg / 11 kg

IQ/OQ/PQ service: Yes, possible
