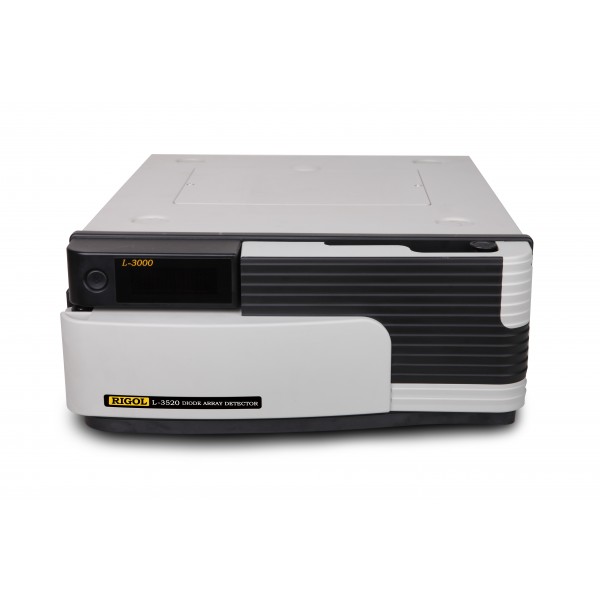

L-3520 DAD(E2)

Model: L-3520 Diode Array Detector
Diodno polje: 1024 piksela
Talasna dužina: 190 - 640 nm
Izvor svetelosti: Deuterium lamp
Spektralna rezolucija: 0.6 nm/piksel
Spektralna širina: 4.8 nm
Tačnost talasne dužine: ± 1 nm
Preciznost talasne dužine: 0.1 nm
Šum: ± 1.0 x 10-5 AU (JJG); ± 0.6 x 10-5 AU (ASTM)
Drift: 0.5 x 10-3 AU/Hr
Linearni opseg: > 2.0 AU (ASTM)
Maksimalna frekvencija uzorkovanja: 12 kanala,100 Hz; Ceo spektar,100 Hz
Pritisak protočne ćelije: 1200 PSI
Svetlosni put protočne ćelije: 10 mm
Zapremina protočne ćelije: 12 µL
Limit detekcije: 2x10-8 g/mL (naphthalene)
Kalibracija talasne dužine: Živa, živin "peak" i ugrađen holmium-oksid filter

Raspoloživost: Na lageru

Detalji

High Sampling Rate

As support by unique high speed signal processing technology, L-3500 UV-VIS detector realized 100 Hz sampling rate, which make the detection of narrow peak with width lower than 5s possible. This high sampling rate also helps to record the chromatography peak accurately and get the best resolution.

Wilder Linearity Range

Adopt unique light path design, multi color optical filter and high quality grating, the detector realized much lower stray light, and extend the linearity range to 2.5AU.

Low Noise

L-3500 have a high performance SNR by the patent electric and structure design.

Dodatne Informacije

ŠIFRA 2010002799
Proizvođač Rigol
Tip instrumenta HPLC Tečna hromatografija
Podgrupa instrumenta DAD- Diode array detector
