L-3245 (B3)

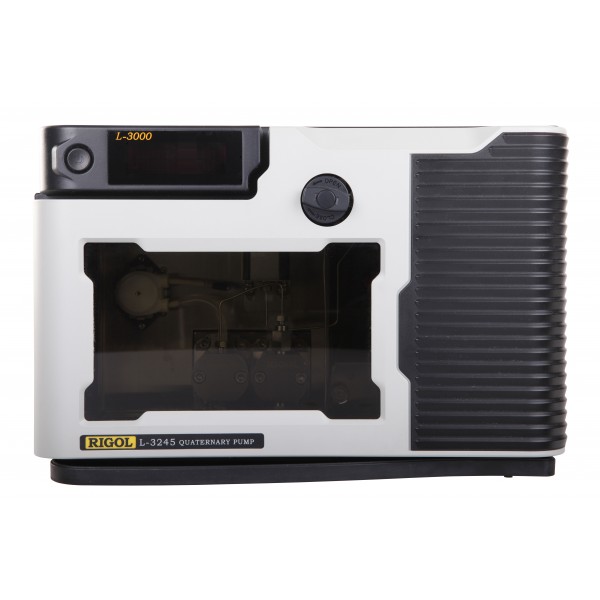

Model: L-3245 Quarternary pump
"Online" degaziranje: 4-kanalno (480 µL po kanalu)
Opseg protoka: 0.001 mL/min do 10.000 mL/min (korak po 0.001 mL/min)
Tačnost protoka: ± 0.2%
Preciznost protoka: ≤ 0.1% (JJG); ≤ 0.06% RSD (ASTM)
Max. pritisak: 9,000 psi
Varijacije pritiska: ≤ 1% or < 10 psi
Tačnost gradijenta: ± 0.5%
Preciznost gradijenta: ± 0.1%

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

High Pressure Limit

L-3200 serial high pressure pump could reach 9000psi (62Mpa) working pressure with the flow rate up to 10mL/min. This high performance extend the application field from normal HPLC to Fast HPLC. With the help of 100Hz detecting and high precision sampling, you can take advantage of small piratical size column and reduce solvent consumption.

Precise Flow Rate & Gradient

L-3200 serial high pressure injection pump could monitor the pressure status by its digital signal processer and adjust the motor operation status based on working parameters and solvent type. This real time feedback mechanism plus the high performance proportional valve realized the steady flow output as well as precise.

Stable Pressure

L-3200 serial high pressure pump's pressure pulsation could be controlled under 10psi with best qualitative repeatability based on it state of art patent design, precise engineering and strict quality control.
