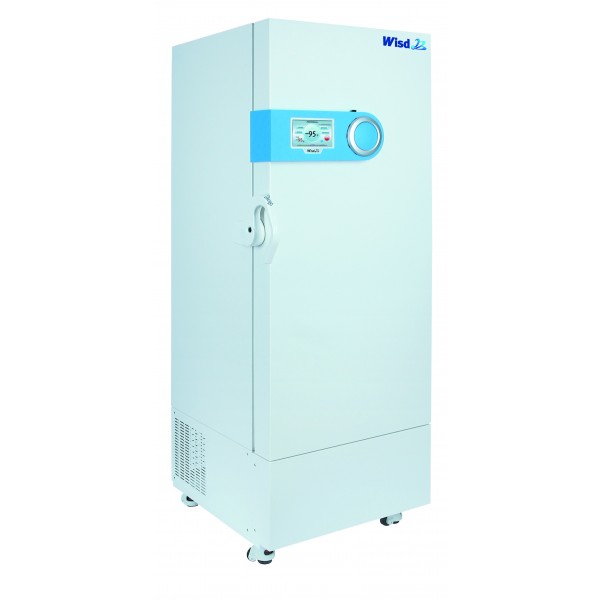

DuoFreez U500

Model: DuoFreez U500
Kapacitet: 503 Lit.
Sistem zamrzavanja: "DuoFreez™" sistem duplog zamrzavanja
Temperaturni opseg na sobnoj temperaturi od 30°C i vlažnosti od 70%: - 95°C do - 65°C
Temperaturni senzor: PT100 senzor
Kompresor: Hermetički zatvoren
Tip kondenzera: blok kondenzer, bez pina, mehanizam bez filtera
Gas hlađenja: Prirodan (gas hlađenja je bez CFC)

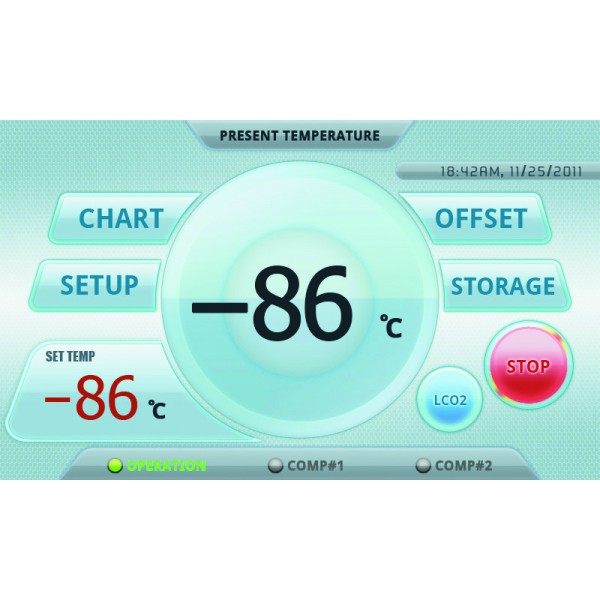

Kontroler & Displej: 7" ekran osetljiv na dodir TFT LCD ("Smart-Lab™" kontroler)
Police: 3kom police od nerđajućeg čelika (u kompletu)

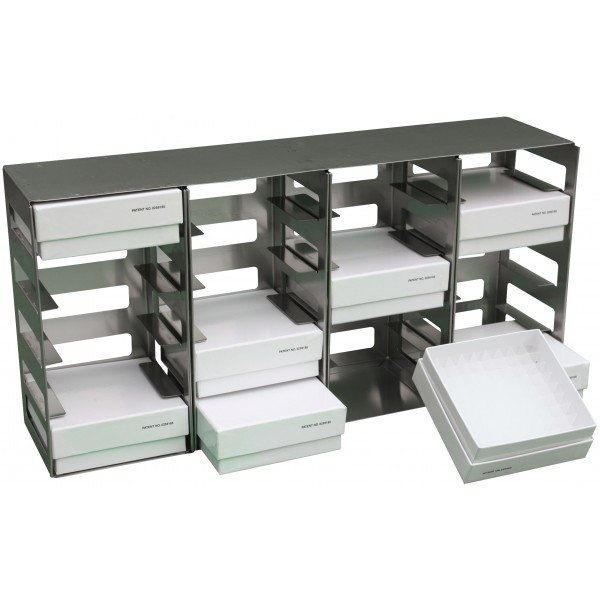

Maksimalni broj rekova/polica: 16kom od 20 (4x5) - postavljeni rekovi/police (RFU50)
Materijal - interno: Nerđajući čelik (#304)
Materijal - eksterno: Ploče od zaštićenog čelika
Materijal - unutrašnja vrata: Presvučen nerđajući čelik (#304)
Ostalo: KGMP sertifikovan, CE & RoHS sertifikovan, GD - znak, PL osiguranje ("Product Liability", osiguranje odgovornosti za proizvod), bez CFC gasa za hlađenje, ekran osetljiv na dodir, TFT LCD "Smart-Lab™" kontroler, ugrađene standardne funkcije upozorenja i alarma, RS232 komunikacioni priključak, softver za daljinsku kontrolu
Interne dimenzije komore (ŠxDxV) (mm): 600x640x1,310
Eksterne dimenzije komore (ŠxDxV) (mm): 840x890x1,900
Neto masa: 300 kg
Dimenzije pakovanja (ŠxDxV) (cm): 116x124x222
Bruto masa: 352 kg
Potrošnja/Snaga u "Dual" režimu rada: 507 Wh
Potrošnja/Snaga u "Eco" režimu rada: 458 Wh
Napajanje i strujni priključak: Jednofazno napajanje, AC 120V, 60Hz ili AC 230V, 50 / 60Hz

IQ/OQ/PQ kvalifikacija: Da, moguća

Raspoloživost: Na lageru

Detalji

DAIHAN DuoFreez™ SMART Digital Ultra - Low Temp. Freezer, Upright - type, - 95°C ~ - 65°C with Smart - Lab™ System, Non - Freon Refrigerants, Auto Vacuum Releasing System, Eco Mode, 308 - /393 - /503 - /714 - Lit.

with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery - information, and Traceable Data Base System
SimpleFreez™ System can freezes down to - 86°C: realize robust and long life time.
DuoFreez™ System can down to - 95°C and High - stability system can be offered. : If one SimpleFreez System fails in operation, the other SimpleFreez System still works and maintains down to - 80°C
Smart - Lab™ Controller
GD (Good Design) - mark
Eco Mode Function for Low Power - consumption.
GMP Certified (Only "U500" Model)
CE & RoHS Certified
PL (Product Liability) Insurance
Ergonomic 7" Full Touch Screen TFT LCD (Smart - Lab™ Controller)
WiRe™ App & Web Service.
Storage Management Function
Self - Diagnostic Function
Automatic Data Recording
Internet Connectivity with WiFi
Eco. Mode for Low Power Consumption
Automatic Vacuum Breaker - Easy to re - open the Door.
Robust & Flexible design of Door Handle
Easy Monitoring and Control - Eye level Controller
CFC - free Refrigerants are used
External Temp. Sensor Hole
Use of Block Condenser removes filter and causes of related failure.
Filter - free Mechanism lowers heat generated by the compressor
Easy Maintenance and Improved Performance
High - quality Insulation Panel and Inner Doors ensure defrosting around outer surface.
Built in Standard Warning and Alarm Functions
RS232 Communication Link and a Remote Control Software are supported

Validation (IQ, OQ) Service is possible

Dodatne Informacije

ŠIFRA DH.SWUF01500
Proizvođač Daihan
Tip instrumenta Frižider i zamrzivač
Podgrupa instrumenta Pametni zamrzivač niske temperature
