BLstar 16

Product Info

BLstar Blue Light LED Illuminators for Fluorescent Samples

Blue light transilluminators are a quite interesting alternative to UV transilluminators as there is no risk of sample damage during illumination. This is important when samples shall be processed furthermore after gel documentation. Users also benefit from it as there is no risk of UV exposure.

Blue light excitation is applicable for fluorescent dyes for nucleic acid or protein stains with excitation wavelengths around 470 nm. Examples for compatible stains are: SYBR^® Green, GelGreen™, SYBR^® Safe, SYBR^® Gold or SYPRO^® Ruby.

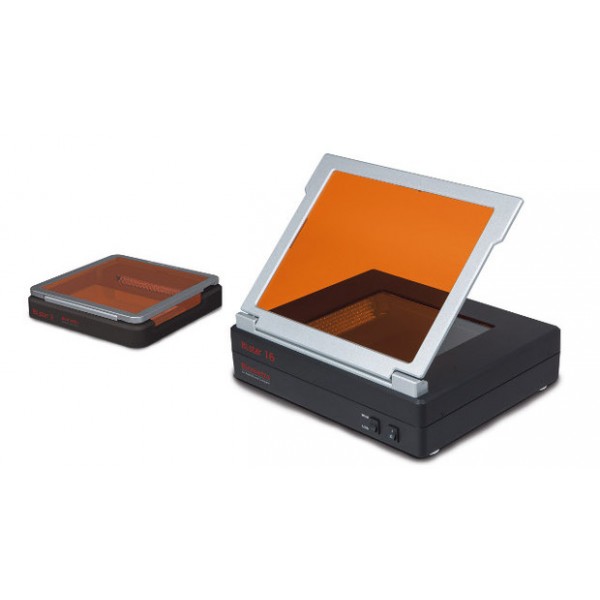

Two different instruments are available within the BLstar line: BLstar 9, the small and handy solution for mini gels up 12. 5 cm x 9 cm and BLstar 16 for documentation of gels up to 16 cm x 20 cm.

Arrays of high - performance blue light LEDs are located at two sides below the illumination area. They provide for a great illumination uniformity and high signal intensity. Both BLstar versions come with an installed lid with amber filter. The lid can be freely adjusted in different angles and allows an easy access to the gel during cutting out of the gel. There is no need to wear amber glasses as the amber lid serves as filter to see the fluorescent samples. This filter lid is also used for gel documentation with a camera. An additional bandpass filter in front of the camera lens is not necessary.

BLstar is compatible with BDAdigital and BDA live gel documentation systems. The small "BDA Hood" of "BDAdigital compact" or "BDA live compact" is directly placed over (BLstar 9) or on (BLstar 16) the blue light table. For use of BLstar together with the advanced darkhood "BDA Box" please choose model "BDA Box BL". This darkhood with drawer for a transilluminator comes with a specific adapter for the BLstar tables.
