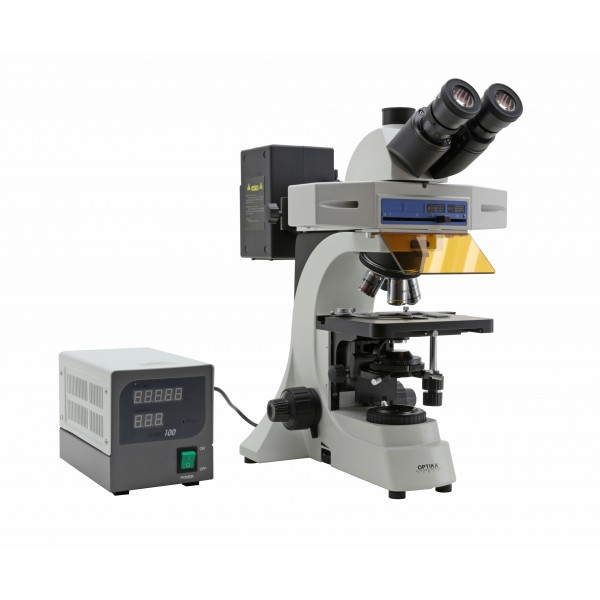

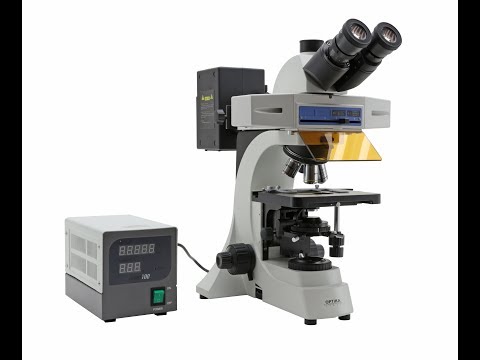

B-500TiFL

Model: B - 500TiFL
Optički sistem: Mehanička dugačka tuba: IOS - Beskonačni optički sistem; parfokalna distanca 45 mm.
Glava mikroskopa: Trinokularna, Inklinacija 30°, Rotiranje 360° podešavanje dioptrije; podešavanje distance interpupilara 55 - 75 mm.
Okular/Okulari: Široko vidno polje 10x/22 mm.
Revolver sa objektivima (Nosepiece): 5 - pozicija na obrnutom revolveru (nosepiece). Kuglični ležajevi sa linearnom vođicom.
Objektiv/Objektivi: IOS PLAN Ahromatski FLUO 4x/0.13, 10x/0.30, 20x/0.50, 40x/0.75
Stočić: Dupli sloj sa mehaničkim kliznim stočićem, 175x145 mm; može se pomerati 76x51 mm.
Sistem fokusiranja: Postolje i zupčasti mehanizam, sa mehanizmom za grubo izoštravanje i mehanizmom za fino/precizno izoštravanje. Rezolucija finog podešavanja iznosi 0.002 mm. Opseg vertikalnog pomeranja: 20 mm. Kontrola i podešavanje tenzije sa desne strane; Podešavanje granice vertikalnog kretanja sa leve strane.
Kondenzer/Sočivo (Numerička apertura): Centrirani "Abbe" kondenzer (model koji se izvlači) sa duplim sočivima. N.A. 0.9 montiran sa Iris dijafragmom. Visina se podešava pomoću stalka i zupčastog mehanizma.
Transmitujuće osvetljenje: X-LED³ ^TM sistem osvetljenja.
Incidentno osvetljenje: HBO 100W živina sijalica visokog pritiska za Epi-Fluorescenciju.

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

FLUO SERIES
Upright and Inverted - Epi - Fluorescence Microscopes

Imagine a fluorescence microscope that needs a lamp change every 50. 000 hours.
Imagine a fluorescence microscope with a cold light source that barely heats up during use.
Imagine a fluorescence microscope that can be switched on, used immediately, switched off and then back on again.
Imagine a fluorescence microscope that is so safe as to need no protection shield whatsoever, and that can be used by everyone, without any specific precaution.

Imagine a fluorescence microscope that can be powered by batteries, as easily as a torchlight.
Imagine a fluorescence microscope that is so sturdy and so compact that it can be used on the field, without any transport problems.
You may think that such an instrument exists in your imagination only.
Actually, such microscope is real, and its name is OPTIKA B - 383LD.
Developed by the OPTIKA Research labs, the B - 383LD marks a revolution in the field of fluorescence microscopy.

Strictly derived from the B - 383FL model, of which it shares the body, the optics and the filter sets, the B - 383LD employs high - power LED instead of the classical mercury vapour bulb.
The LED is tailored to the specific applications (FITC - TRITC).

The brightfield illuminator uses our x - LED™ system, and the colour temperature closely matches sunlight.

The microscope is available in two versions: B - 383LD1 and B - 383LD2.
