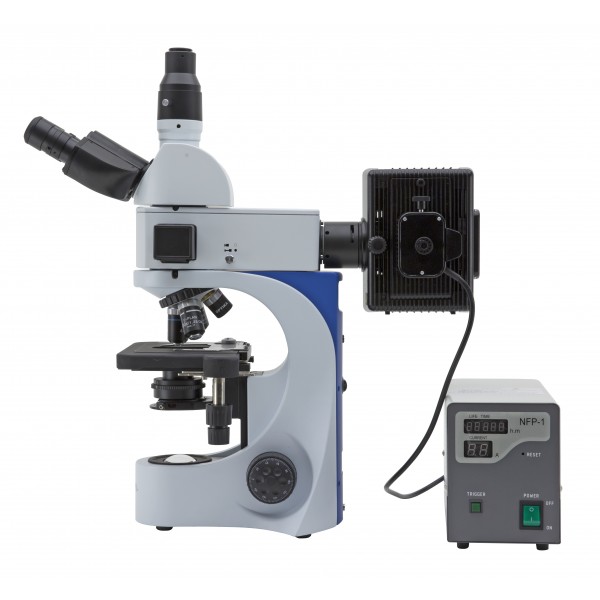

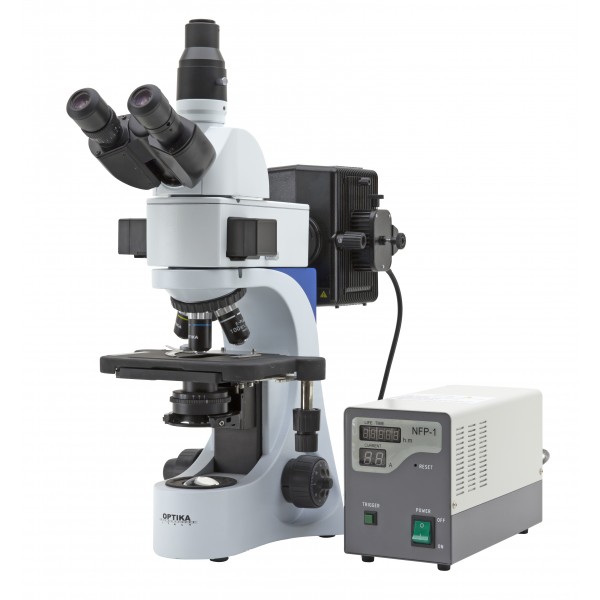

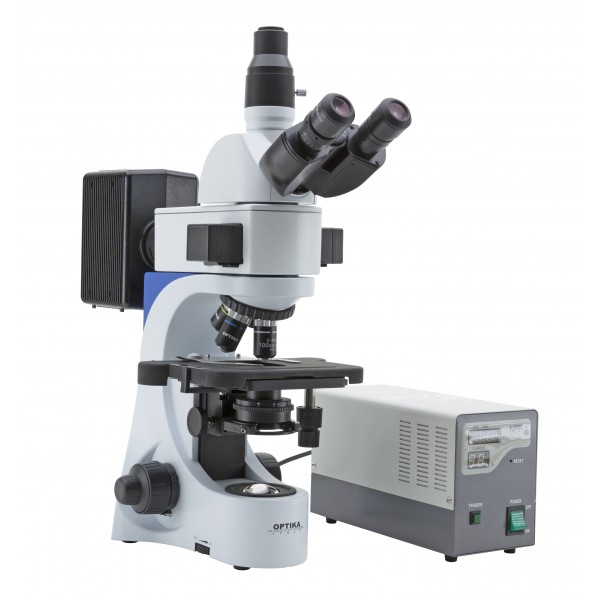

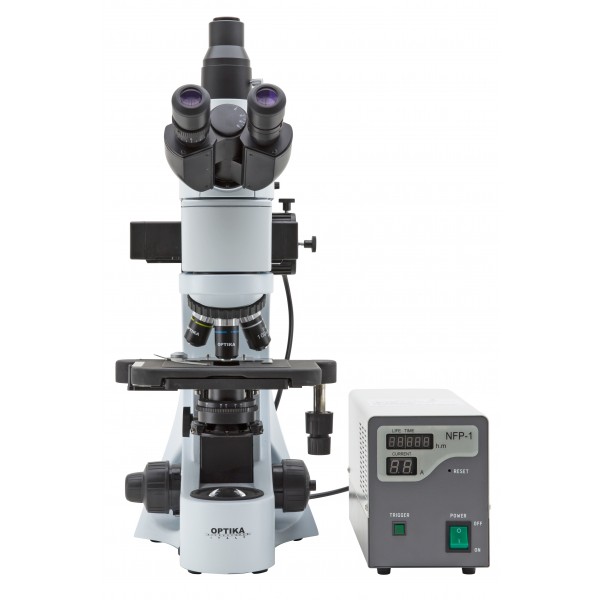

B-383FL

Model: B - 383FL
Glava mikroskopa: Trinokularna, Inklinacija 30°, Rotiranje 360°, Podešavanje interpupilara 48 - 75 mm.
Okular/Okulari: WF10x/20mm
Revolver sa objektivima (Nosepiece): 5 - pozicija na obrnutom revolveru (nosepiece). Kuglični ležajevi za rotiranje.
Objektiv/Objektivi: IOS E-PLAN 4x/0.10, 10x/0.25, 20x/0.40, 40x/0.65, 100x/1.25 (sa uljem)
Sistem fokusiranja: Mehanizam za grubo izoštravanje i mehanizam za fino/precizno izoštravanje.
Stočić: Dupli mehanički stočić koji se može pomerati, dimenzije 216x150mm, može se pomerati 78x54mm. Pomeranje po X osi je preko kaiša.
Kondenzer/Sočivo (Numerička apertura): "Abbe" tip, klizno pomeranje, N.A. 1.25 sa sistemom za centriranje.
Osvetljenje: Transmitujuće svetlo: X-LED3 TM sa sistemom za manualno podešavanje intenziteta svetlosti. Epi-Fluorescencija: HBO 100W živina sijalica visokog pritiska
Napajanje: Eksterno napajanje Ulaz 100 - 240 Vac 50 - 60Hz / izlaz 6Vdc 1A. Napajanje za fluorescenciju je 100W. Displej sa tajmerom i snagom struje.

Raspoloživost: Na lageru

Detalji

FLUO SERIES
Upright and Inverted - Epi - Fluorescence Microscopes

Imagine a fluorescence microscope that needs a lamp change every 50. 000 hours.
Imagine a fluorescence microscope with a cold light source that barely heats up during use.
Imagine a fluorescence microscope that can be switched on, used immediately, switched off and then back on again.
Imagine a fluorescence microscope that is so safe as to need no protection shield whatsoever, and that can be used by everyone, without any specific precaution.

Imagine a fluorescence microscope that can be powered by batteries, as easily as a torchlight.
Imagine a fluorescence microscope that is so sturdy and so compact that it can be used on the field, without any transport problems.
You may think that such an instrument exists in your imagination only.
Actually, such microscope is real, and its name is OPTIKA B - 383LD.
Developed by the OPTIKA Research labs, the B - 383LD marks a revolution in the field of fluorescence microscopy.

Strictly derived from the B - 383FL model, of which it shares the body, the optics and the filter sets, the B - 383LD employs high - power LED instead of the classical mercury vapour bulb.
The LED is tailored to the specific applications (FITC - TRITC).

The brightfield illuminator uses our x - LED™ system, and the colour temperature closely matches sunlight.

The microscope is available in two versions: B - 383LD1 and B - 383LD2.

Dodatne Informacije

ŠIFRA B-383FL
Proizvođač Optika
Tip instrumenta Mikroskop
Podgrupa instrumenta Mikroskopi sa EPI-Fluorescencijom
