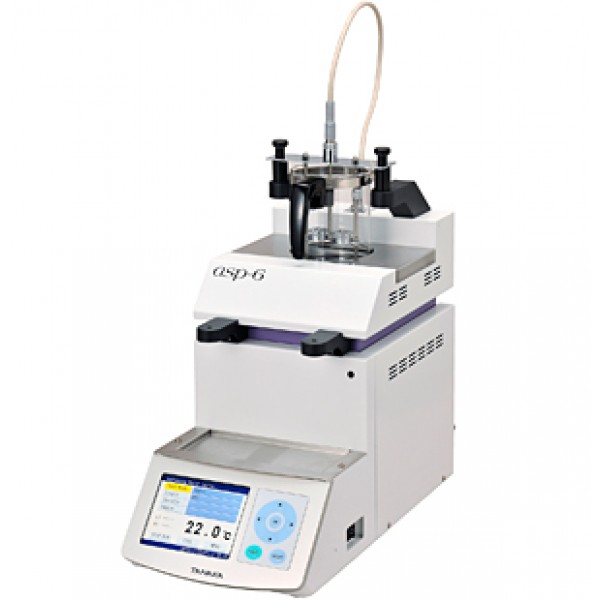

ASP-6

Model: AAP-6
Test Methods: ASTM D36, ASTM E28, EN 1427, IP 58, etc
Type: Two-rings & two-balls
Measuring Range: Ambient to 200?C (392?F )
Temperature Sensor: PT-100 in stainless steel sheath
Softening Point Detector: Light projector: LED; Light receiver: photo-diode
Display: 5.7" color LCD with back light
Heater: Nichrome coil heater: 1,000W @100V or 1,000W @220V
Sequense Control: By an on-board microcomputer
Test Mode: ASTM D36 water, ASTM D36 glycerin, EN 1427 water, EN 1427 glycerin
Stirring: Magnetic stirring, selectable from 0 to 250 rpm
I/O Port: 1x Ethernet for LIMS; 1x USB for Flash Memory or Keyboard; 1x RS-232C for LIMS / PC or Optional Printer
Data Memory: Last 200 sets of test results
Safety Mechanism: a) The sample falls on only one side and not on the other within the set temperature range, b) The sample does not fall on either side within the set upper limit temperature, c) Light projector or receiver is found defective, d) Temperature sensor is found defective, e) Temperature sensor is not placed in the right position, f) Built-in battery is found drained out, or g)Control computer runs away (no display)
Size (WxDxH): 230 x 470 x 440 (mm)
Weight: 15 kg
Ambiental Conditions: RT: 10 to 40?C, RH: Less than 90% (no condensation)
Power Supply: AC100/120 V or 220/240V 50/60Hz (set at the factory, specify when ordering) 1,500W ( max.)

IQ/OQ/PQ Qualification: Yes, possible
