AKV-202

Model: AKV-202
Type: Bench top automatic KV measuring system with 2 viscometers in 1 bath
Related Standards: ISO 3104, ASTM D445, IP71, etc.
Viscometers: Modified Lanz-Zeitfuchs viscometers
Measuring Range: 10,000 mm2 /s for automatic operation. (Range depends on viscometer.)
Meniscus Detection: By photo-electric devices with fiber optics
Timing: 0.00 - 999.99 sec
Bath: Stainless Steel bath with drain, 18 liters
Bath Heater: Sheathed heaters, 0.59kW x2
Bath Lighting: Fluorescent light, 6W
Bath Medium: Water (distilled or ion exchanged) for < 75°C, Colorless/transparent silicon oil (with PMCC flash point of 190°C at minimum and KV of 10-20mm2/s) for >= 75°C.
Bath Temperature Controller: Temp: Preset at 6 points. Preset point can be set at any temp between 20 and 100°C; Precision: ±0.01°C
Cleaning/Drying Viscometers: An automatic cycle consisting of draining sample, injecting chemicals, and drying with air. By vacuum; Chemicals: BTX for cleaning, Ethanol ?Bath Temp <80°C?for drying. (Ether or Ketone can not be used); Fume: Fume to be exhausted through trap and hose to outside
Display: Test parameters, status, trouble, etc. displayed on fluorescence display module
Printer: Thermal printer, 58mm of paper width
Computer Output: RS-232C, 1 channel
Safety: Alarms for gas, bath medium level, & bath overheat
Power Requirements: 100, 120, 220 or 240VAC, 2 KW
Dimension & Weight (Wxdxh): 530mm x 560mm x 930mm, 75kg

IQ/OQ/PQ Qualification: Yes, possible

Raspoloživost: Na lageru

Detalji

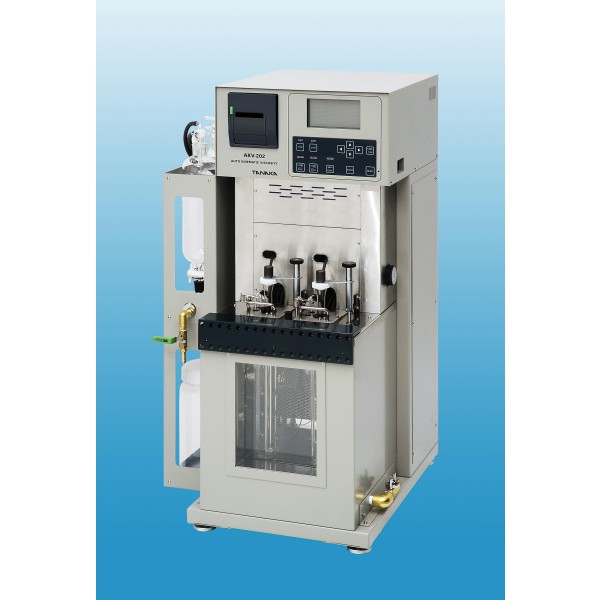

Automatic Kinematic Viscosity Measuring System
Tanaka AKV-202

Model AKV-202 has been designed for automatic determination of KINEMATIC VISCOSITY. Once a specimen is set the series of processes including timing, cleaning/drying of viscometer tube, and reporting are fully automated. AKV-202 is an economical bench-top system, which saves not only the technician's time but also valuable laboratory floor space and budget.

WIDE RANGE OF SAMPLES: Wide range of Kinematic Viscosity(KV) can be covered with the modified Lanz-Zeitfuchs viscometers. The reverse flow viscometer covers both transparent and opaque samples and also eliminates drainage error.

AUTOMATIC MEASUREMNT: Timing, sample draining, viscometer cleaning/drying, calculating/reporting are automated, saving the time of the experienced hands and improving repeatability.

COMPACT DESIGN: The two-viscometers/one-bath system is housed in a compact housing that is small enough to install on a lab bench.

EASY VISCOMETER REPLACEMENT: Viscometer is mounted to a viscometer holder and the viscometer holder assembly can be removed from the bath at ease, which assures easy viscometer replacement.

OVERFLOW: The viscometer has a provision of overflow, which eliminates errors from inconsistency in sampling volume as well as thermal expansion of the sample.

VERSATILE CLEANING/DRYING SYSTEM: Two tanks are provided for cleaning and drying the viscometers, which allows quick and efficient cleaning/drying by selecting the best chemicals for the sample.

Dodatne Informacije

ŠIFRA AKV-00-002
Proizvođač Tanaka
Tip instrumenta Kinematic Viscosity Analyzer
Podgrupa instrumenta Kinematic Viscosity Analyzer
