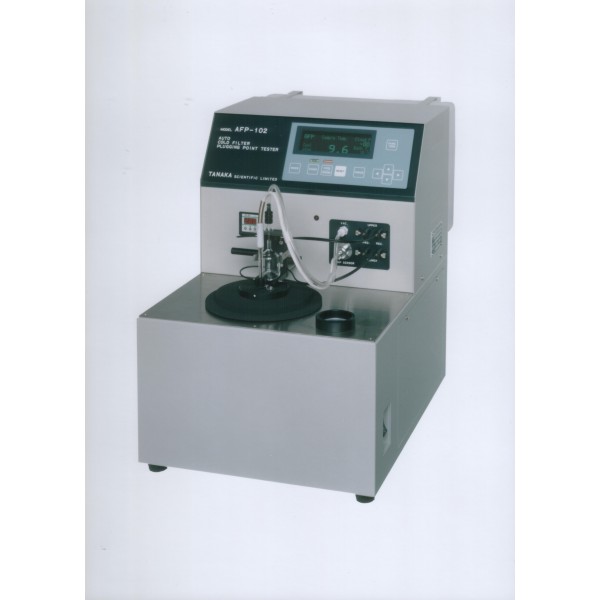

AFP-102

Model: AFP-102
Conforming Standards: IP309, ASTM D6371, EN116 and JIS K2288
Type: 1 test head.
Specimen Volume: 45ml
Measuring Range (Typical): RT to -60°C (The lowest temperature varies with the chiller liquid temperature and ambient temperature.)
Sequence Control: By a built-in micro processor
Display: By a fluorescence display (VFD) Temperatures displayed with 0.1°C increments
Temperature Sensor: Pt-100
Cfpp Detection: By means of a photo-electric detector consisting of an LED, photo transistor, and light guide (fiber optics). Upper and lower light guides are mounted on sliding type holder.
Vacuum Regulator: Consists of a micro air pump, pressure switch, solenoid valve and a plastic bottle.
Cooling And Heating (Needs Optional Chiller): By Peltier cells. The hot side of the Peltier cells needs to be cooled by external chiller.
Temperature Control: By step (-34°C, -51°C and -67°C) or linear. The linear cooling rate can be programmed.
Safety Features: a) Over cut: as hot side of TED reaches 60°C, warning buzzer beeps and stops. b) Self diagnostic: reported by an intermittent buzzer and a text message when any temperature sensor breaks down or the battery has drained out. c) System trouble: reported by a buzzer when the built-in microprocessor runs off.
Data Output: 1x RS-232C (for PC or Optional Printer). 2nd set channel is optional.
Power Requirements: 100 or 120VAC, 5A; 220 or 240VAC, 3A Please specify AC voltage when ordering.
Dimensions And Weight: 350W x 550D x 480H mm, 27kg

IQ/OQ/PQ Qualification: Yes, possible
