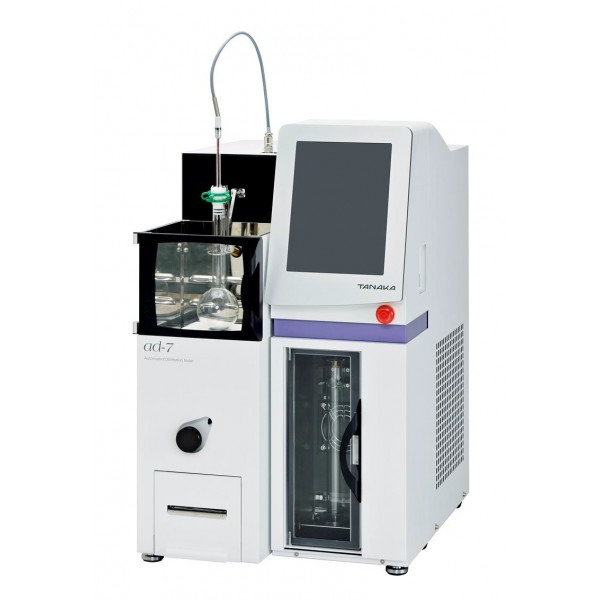

AD-7

Model: AD-7
Standard Test Methods: ISO 3405, IP123/195, ASTM D86/D850/D1078, JIS K 2254
Range: Selectable from 0°C to 300/450°C(fuel oil) or 0°C to 200/450°C (ASTM D850, D1078 with optional accessories)
Display: TFT-LCD 10.4" Color Touch-Screen with universal design GUI
Temperature sensor: Vapor: PT100, Heater: Thermocouple, Condenser: PT100, Receiver room: PT100
Heater: 24V, 600W low mass and low voltage heater, spiral type
Distillation Rate: 4.5 %/min at factory (Selectable from 2 to 9 % with 0.5 % increment)
Test Mode: Up to 200 test modes can be recorded
Safety features: Overheat protection. Warning device for fire.
Correction: Loss correction and barometric correction
Communication port: RS-232C, USB , Ethernet 1ch each.
Dimensions: W430 x D520 x H710 mm
Weight: 55 kg
Power Source: AC100 V-240 V?50/60 Hz?1,500 W

IQ/OQ/PQ kvalifikacija: Yes, possible

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

It's been over 50 years since Tanaka started manufacturing automated distillation testers. Nowadays, they deliver to customers in more than 70 countries.

AD-7 automatically performs distillation test of petroleum products prescribed in
